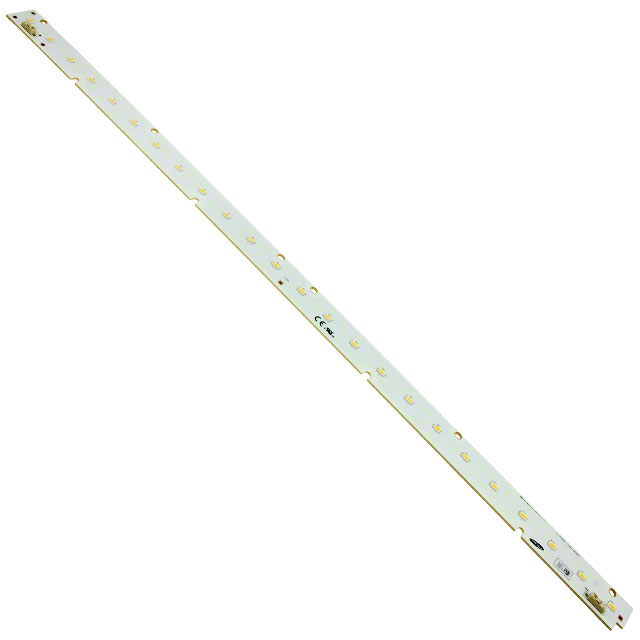

SI-B8T112560WW
LED MOD LT-E562A LNR STRP 4000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Samsung Semiconductor, Inc. presents the SI-B8T112560WW, an LED Module from the LT-E562A series. This linear light strip offers a neutral white illumination with a Correlated Color Temperature (CCT) of 4000K, precisely controlled within a 3-Step MacAdam Ellipse. Designed for efficient operation, it typically draws 300mA at a forward voltage of 37.4V, achieving a luminous efficacy of 133 lm/W at a test temperature of 50°C. The module delivers a typical luminous flux of 1487 lumens and features a high Color Rendering Index (CRI) of 80. Its dimensions are 560.00mm in length by 24.00mm in width, with a height of 5.80mm, suitable for various lighting applications. This component is commonly utilized in general lighting, architectural lighting, and commercial display solutions. The SI-B8T112560WW is packaged in a tray and includes an integrated connector for ease of integration.
Additional Information
Series: LT-E562ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 560.00mm L x 24.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 37.4V |
| Height | 5.80mm |
| Current - Test | 300mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 360mA |
| Lumens/Watt @ Current - Test | 133 lm/W |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 50°C |
| Luminous Flux @ Current/Temperature | 1487lm (Typ) |
