SI-B8T09626001
LED MOD FINGER-SQ32B RECT 4000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

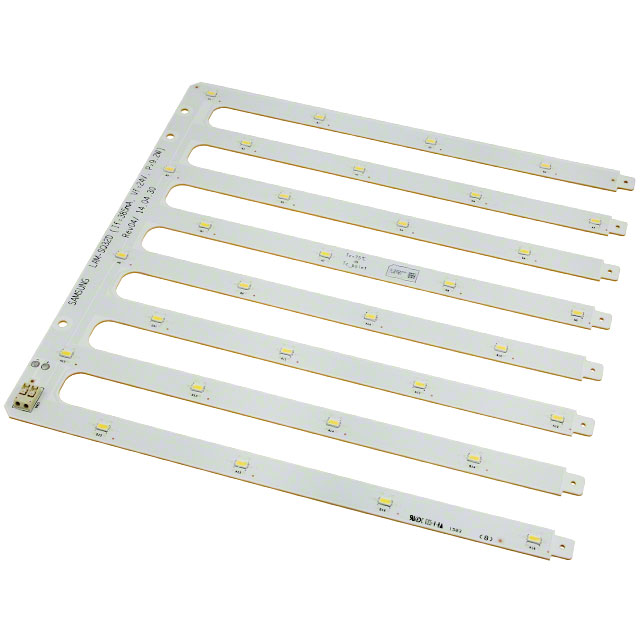

Samsung Semiconductor, Inc. Finger-SQ32B Series LED Module, Part Number SI-B8T09626001, is a high-efficiency lighting component designed for robust performance. This neutral white LED module features a 4000K color temperature with a 3-step MacAdam ellipse specification for excellent color consistency. It delivers a typical luminous flux of 1370 lumens at a test current of 385mA, achieving a luminous efficacy of 148 lm/W. The module operates at a forward voltage of 24V and has a maximum current rating of 600mA. With a Color Rendering Index (CRI) of 80, it provides accurate color representation. The flat lens and 115° viewing angle are suitable for general illumination applications. This module, with its integrated connector, is supplied in a tray package and finds use in the architectural lighting and general illumination industries. Its dimensions are 259.00mm in length and 250.00mm in width, with a height of 5.80mm.
Additional Information
Series: Finger-SQ32BRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 259.00mm L x 250.00mm W |
| Type | LED Module |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 24V |
| Height | 5.80mm |
| Current - Test | 385mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 600mA |
| Lumens/Watt @ Current - Test | 148 lm/W |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 35°C |
| Luminous Flux @ Current/Temperature | 1370lm (Typ) |
