SI-B8T08228001
LED MOD LT-E284A LNR STRP 4000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

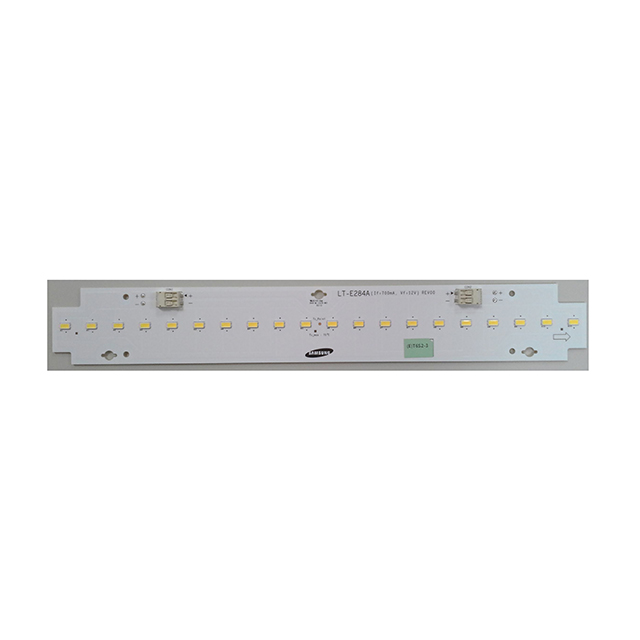

Samsung Semiconductor, Inc. offers the LT-E284A series LED Module, part number SI-B8T08228001. This linear light strip is configured for neutral white illumination with a Correlated Color Temperature (CCT) of 4000K, specified within a 3-Step MacAdam Ellipse. Delivering a typical luminous flux of 1150lm at a test current of 700mA and 45°C, this module achieves 135 lm/W. It operates with a forward voltage of 12.2V (typ) and a maximum current rating of 750mA. The module features a Color Rendering Index (CRI) of 80 and a flat lens type with a 115° viewing angle. Dimensions are 280.00mm in length by 40.00mm in width, with a height of 5.60mm. This component includes a connector for simplified integration. The Samsung Semiconductor SI-B8T08228001 is suitable for applications in general lighting and architectural lighting.
Additional Information
Series: LT-E284ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 280.00mm L x 40.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 12.2V |
| Height | 5.60mm |
| Current - Test | 700mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 750mA |
| Lumens/Watt @ Current - Test | 135 lm/W |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 45°C |
| Luminous Flux @ Current/Temperature | 1150lm (Typ) |
