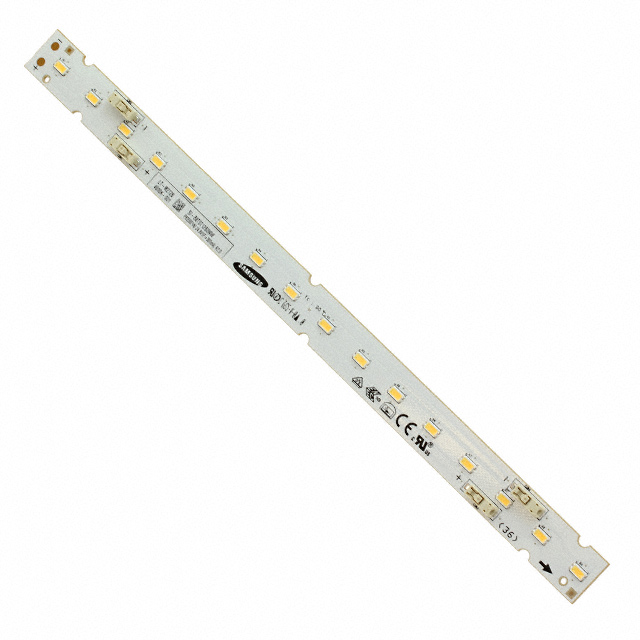

SI-B8T071280WW
LED MOD LT-M272B LNR STRP 4000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Samsung Semiconductor, Inc. LT-M272B LED Module, part number SI-B8T071280WW, is a linear light strip featuring a neutral white color with a correlated color temperature (CCT) of 4000K. This module operates with a typical forward voltage of 24V and a test current of 300mA, delivering a typical luminous flux of 991 lumens and a luminous efficacy of 138 lm/W at that current and 50°C. The module has a dimensions of 275.00mm length by 18.00mm width and a height of 5.80mm. It offers a wide viewing angle of 115° and a Color Rendering Index (CRI) of 80. This component is suitable for general lighting applications.
Additional Information
Series: LT-M272BRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 275.00mm L x 18.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 24V |
| Height | 5.80mm |
| Current - Test | 300mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 360mA |
| Lumens/Watt @ Current - Test | 138 lm/W |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 50°C |
| Luminous Flux @ Current/Temperature | 991lm (Typ) |
Request a Quote
Clients Also Buy

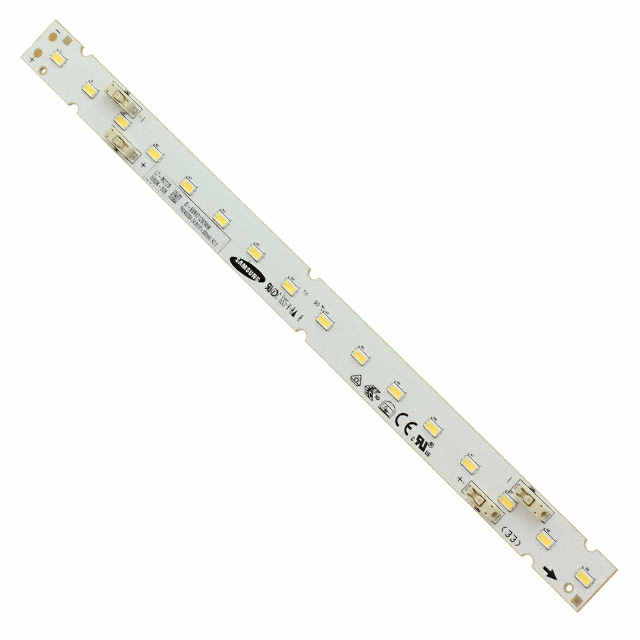

SI-B8R071280WW
