SI-B8T051280WW
LED MOD LT-M272A LNR STRP 4000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

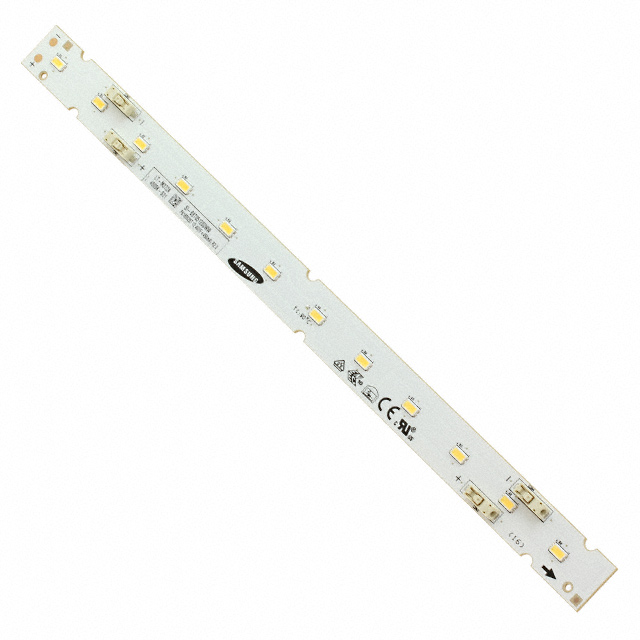

Samsung Semiconductor, Inc. presents the SI-B8T051280WW, a linear LED module from the LT-M272A series. This neutral white lighting component operates at 4000K CCT with a Color Rendering Index of 80. Designed for efficiency, it achieves 138 lumens per watt at a test current of 450mA, delivering a typical luminous flux of 743 lumens. The module features a flat lens and a 115° viewing angle. Its dimensions are 275.00mm in length and 18.00mm in width, with a height of 5.80mm. The forward voltage is typically 12V. This component is suitable for general illumination and commercial lighting applications. It is supplied in tray packaging.
Additional Information
Series: LT-M272ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Color | White, Neutral |
| Wavelength | - |
| Size / Dimension | 275.00mm L x 18.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 12V |
| Height | 5.80mm |
| Current - Test | 450mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 450mA |
| Lumens/Watt @ Current - Test | 138 lm/W |
| CCT (K) | 4000K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 55°C |
| Luminous Flux @ Current/Temperature | 743lm (Typ) |
Request a Quote
Clients Also Buy
SI-B8R051280WW
LED MOD LT-M272A LNR STRP 5000K

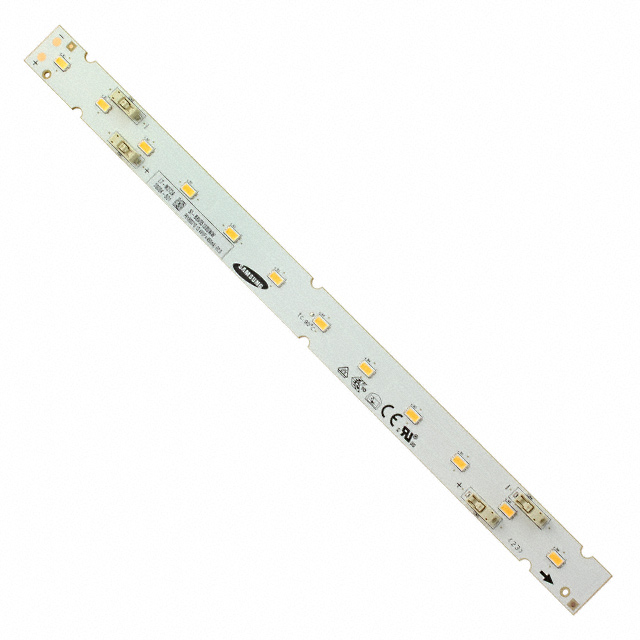

SI-B8V051280WW
