SI-B8R301B20WW
LED MOD MSERIES 4FTB 5000K STRIPManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

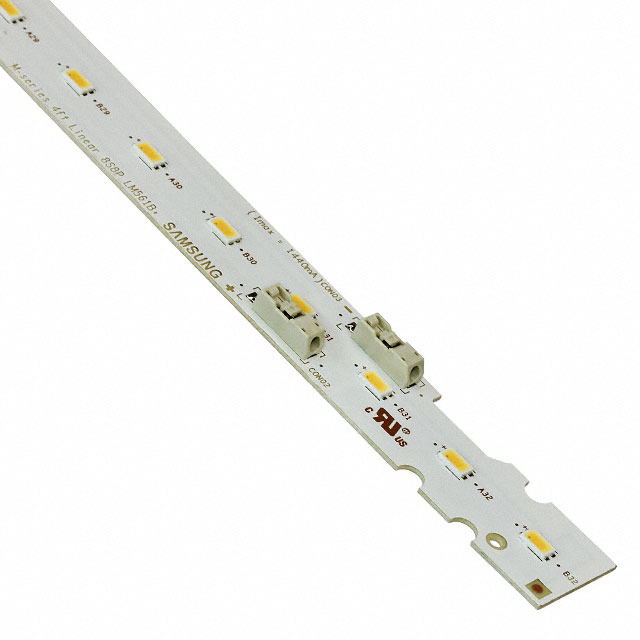

Samsung Semiconductor, Inc. M Series 4ft_B SI-B8R301B20WW is a cool white linear LED module with a Correlated Color Temperature (CCT) of 5000K. This module is configured as a 4-foot strip, measuring 1120.00mm in length and 18.00mm in width, with a height of 5.20mm. It features a flat lens type and a 115° viewing angle. The device operates with a typical forward voltage of 24.8V and a maximum current of 1.44A, with a test current of 1.2A achieving 148 lm/W. At the test conditions, the luminous flux is typically 4400 lumens. The Color Rendering Index (CRI) is 80. This component is suitable for general lighting applications and is supplied in bulk packaging.
Additional Information
Series: M Series 4ft_BRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Bulk |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 1120.00mm L x 18.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 24.8V |
| Height | 5.20mm |
| Current - Test | 1.2A |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 1.44A |
| Lumens/Watt @ Current - Test | 148 lm/W |
| CCT (K) | 5000K |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 50°C |
| Luminous Flux @ Current/Temperature | 4400lm (Typ) |
