SI-B8R172560WW
LED MOD LTM562C WH LNR STR 5000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

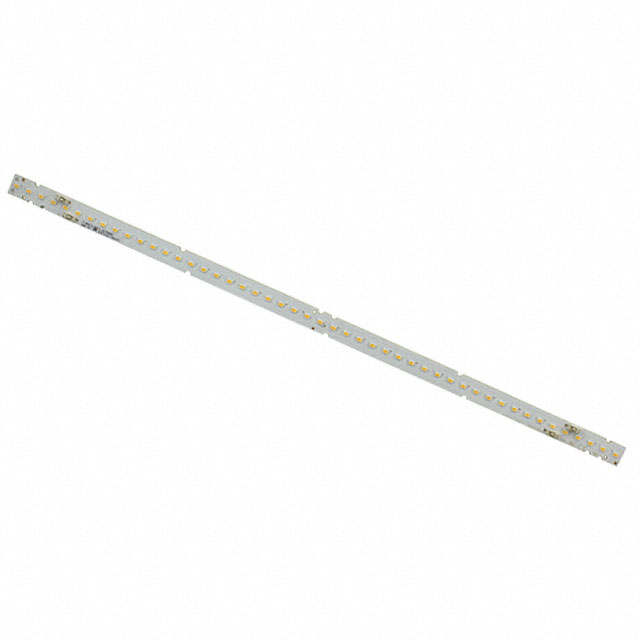

Samsung Semiconductor, Inc. LT-M562C_G2 series linear LED module, part number SI-B8R172560WW. This cool white module offers a correlated color temperature (CCT) of 5000K with a 4-step MacAdam ellipse for color consistency. Designed as a linear light strip, it features a 115° viewing angle and a flat lens. The module operates with a typical forward voltage of 24V and a maximum current of 1.08A, demonstrating a typical efficacy of 158 lm/W at 700mA test current. At this test condition, the luminous flux is 2655 lumens. The module includes a connector for integration and has dimensions of 560.00mm in length and 18.00mm in width, with a height of 4.40mm. This component is suitable for various lighting applications, including architectural lighting and general illumination.
Additional Information
Series: LT-M562C_G2RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 560.00mm L x 18.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 24V |
| Height | 4.40mm |
| Current - Test | 700mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 1.08A |
| Lumens/Watt @ Current - Test | 158 lm/W |
| CCT (K) | 5000K 4-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 50°C |
| Luminous Flux @ Current/Temperature | 2655lm (Typ) |
