SI-B8R151560WW
LED MOD LT-M562B LNR STRP 5000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

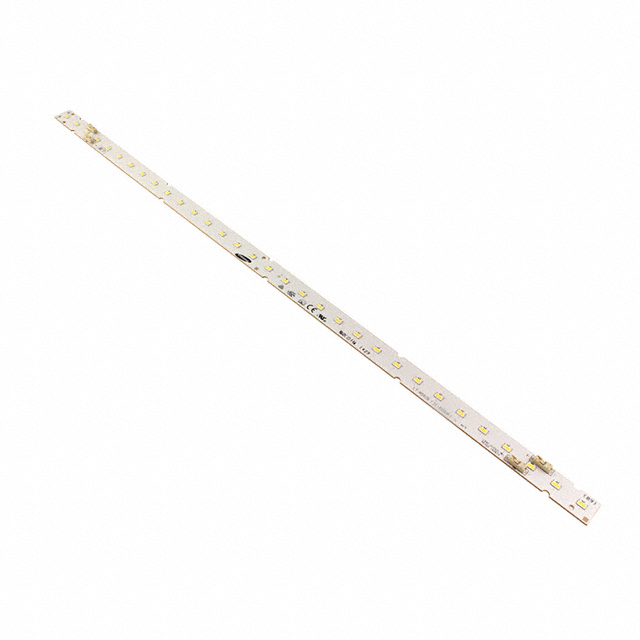

Samsung Semiconductor, Inc. LT-M562B Series linear LED module, part number SI-B8R151560WW. This cool white LED strip offers a 5000K correlated color temperature with a 3-step MacAdam ellipse for tight binning. Rated at 80 CRI, it delivers 2100 lumens typical at a test current of 600mA, achieving 142 lm/W. The module operates at a forward voltage of 24.7V and has a maximum current of 600mA. Its dimensions are 560.00mm L x 18.00mm W with a height of 5.80mm, featuring a flat lens and an integrated connector for ease of use. This component is suitable for general illumination and architectural lighting applications.
Additional Information
Series: LT-M562BRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 560.00mm L x 18.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 24.7V |
| Height | 5.80mm |
| Current - Test | 600mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 600mA |
| Lumens/Watt @ Current - Test | 142 lm/W |
| CCT (K) | 5000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 50°C |
| Luminous Flux @ Current/Temperature | 2100lm (Typ) |
Request a Quote
Clients Also Buy

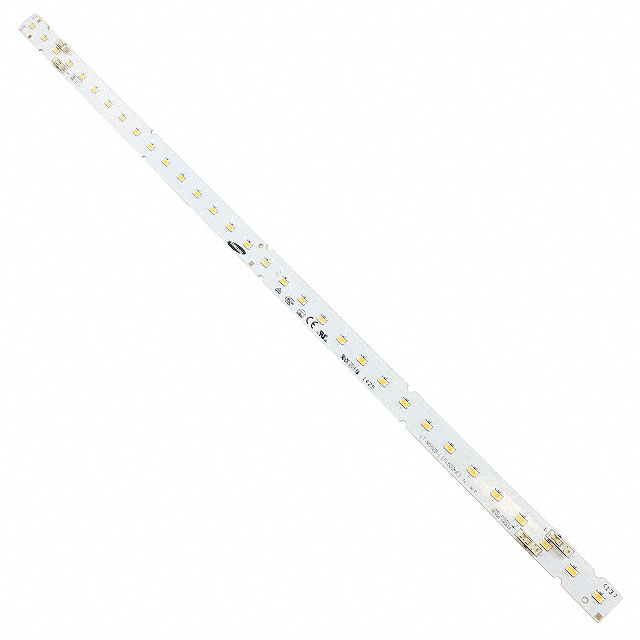

SI-B8V151560WW
