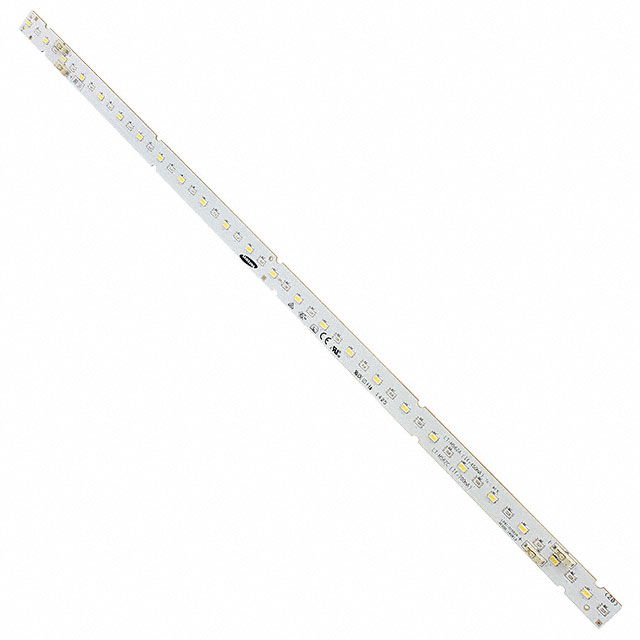

SI-B8R111560WW
LED MOD LT-M562A LNR STRP 5000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Samsung Semiconductor, Inc. LT-M562A Series LED module. This cool white linear light strip operates at 24.7V forward voltage and a maximum current of 450mA, delivering 1580 lumens typical luminous flux at 142 lm/W efficacy. Featuring a 5000K color temperature with a 3-Step MacAdam ellipse and an 80 CRI, this module is suitable for applications requiring consistent color uniformity. The compact design measures 560.00mm in length and 18.00mm in width with a height of 5.80mm. It includes an integrated connector for ease of use. This component is commonly utilized in architectural lighting, general illumination, and signage applications.
Additional Information
Series: LT-M562ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 560.00mm L x 18.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 24.7V |
| Height | 5.80mm |
| Current - Test | 450mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 450mA |
| Lumens/Watt @ Current - Test | 142 lm/W |
| CCT (K) | 5000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 50°C |
| Luminous Flux @ Current/Temperature | 1580lm (Typ) |
Request a Quote
Clients Also Buy
SI-B8T111560WW
LED MOD LT-M562A LNR STRP 4000K

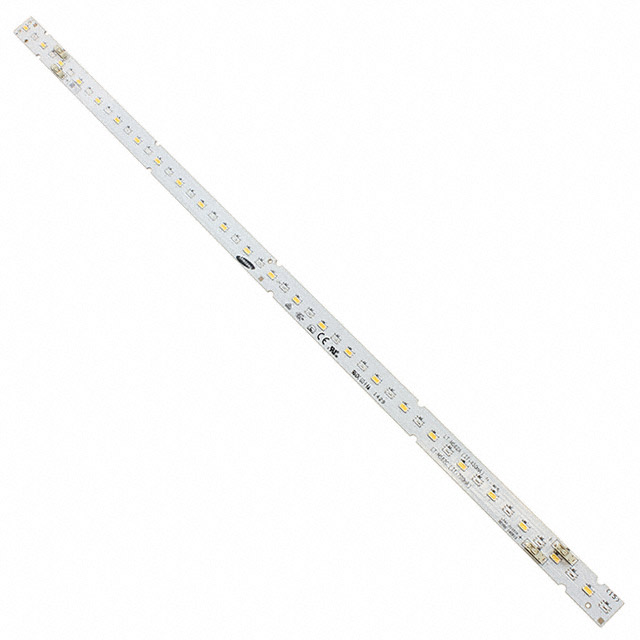

SI-B8U111560WW
LED MOD LT-M562A LNR STRP 3500K

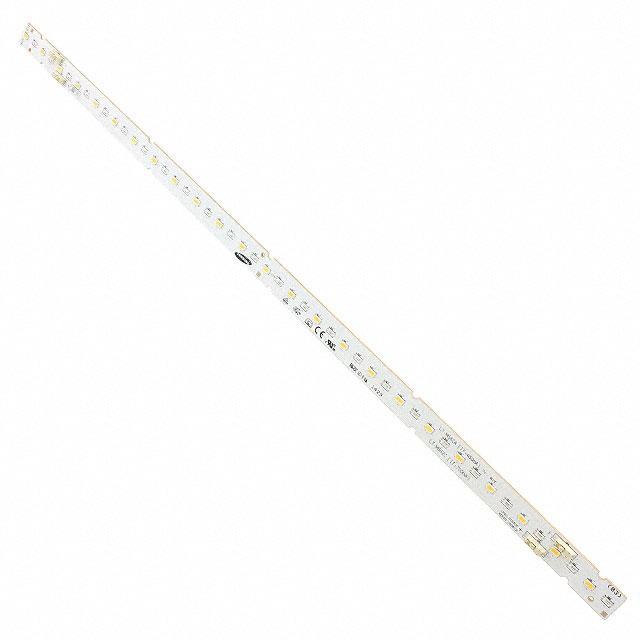

SI-B8V111560WW
