SI-B8R111550WW
LED MOD LT-M552A LNR STRP 5000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

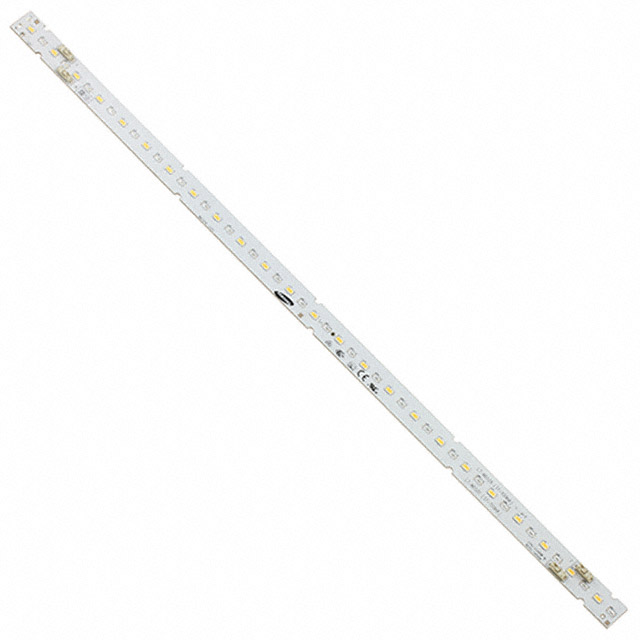

Samsung Semiconductor, Inc. LT-M552A Series linear LED module, part number SI-B8R111550WW. This cool white, 5000K module offers a 115° viewing angle and a CRI of 80. Designed for efficient illumination, it achieves 142 lm/W at a test current of 450mA, producing a typical luminous flux of 1580 lumens. The forward voltage is typically 24.7V, with a maximum test current of 450mA at 50°C. Its dimensions are 550mm in length and 18mm in width, with a height of 5.80mm. Featuring a flat lens and an integrated connector, this module is supplied in trays. Applications include general lighting and architectural illumination.
Additional Information
Series: LT-M552ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 550.00mm L x 18.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 24.7V |
| Height | 5.80mm |
| Current - Test | 450mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | - |
| Lumens/Watt @ Current - Test | 142 lm/W |
| CCT (K) | 5000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 50°C |
| Luminous Flux @ Current/Temperature | 1580lm (Typ) |
