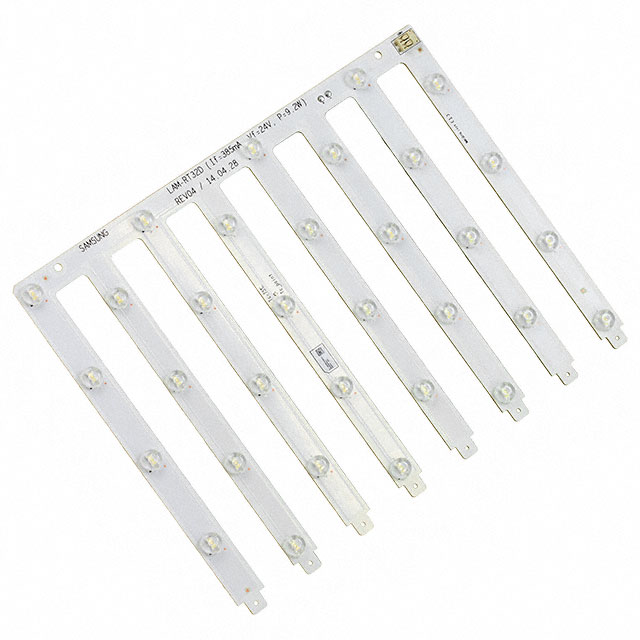

SI-B8R09528001
LED MOD LAM-RT32B WHT RECT 5000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Samsung Semiconductor, Inc. LAM-RT32B series LED module, part number SI-B8R09528001, offers a cool white light with a Correlated Color Temperature (CCT) of 5000K, specified within a 4-step MacAdam ellipse. This rectangular LED module features a high Color Rendering Index (CRI) of 80 and a typical luminous flux of 1360 lumens at a test current of 385mA. With a maximum current rating of 600mA, it achieves an efficacy of 148 lm/W at the test conditions. The module operates at a typical forward voltage of 24V and includes an integrated connector for ease of integration. Its dimensions are 273.00mm in length and 216.00mm in width, with a height of 6.60mm. The LAM-RT32B series is suitable for various lighting applications, including general illumination and architectural lighting, where consistent color and high performance are critical. The viewing angle is 145°. This component is packaged in a box.
Additional Information
Series: LAM-RT32BRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Box |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 273.00mm L x 216.00mm W |
| Type | LED Module |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 24V |
| Height | 6.60mm |
| Current - Test | 385mA |
| Viewing Angle | 145° |
| Lens Type | Flat |
| Current - Max | 600mA |
| Lumens/Watt @ Current - Test | 148 lm/W |
| CCT (K) | 5000K 4-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 35°C |
| Luminous Flux @ Current/Temperature | 1360lm (Typ) |
Request a Quote
Clients Also Buy

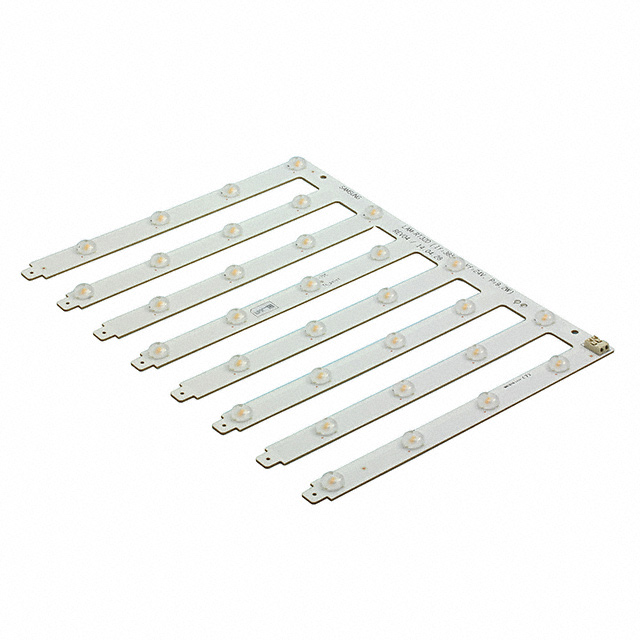

SI-B8U095280WW
