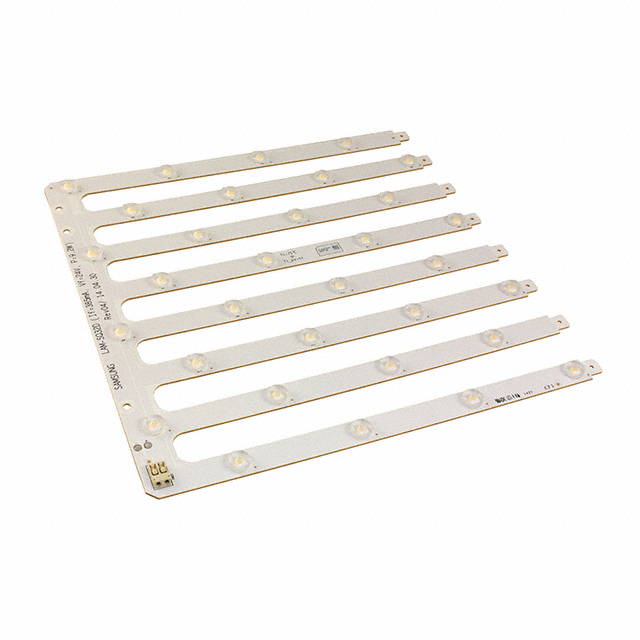

SI-B8R09526001
LED MOD LAM-SQ32B WHT RECT 5000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Samsung Semiconductor, Inc. LAM-SQ32B series LED module, part number SI-B8R09526001, is a cool white, rectangular COB engine. This module operates with a typical forward voltage of 24V and a test current of 385mA, delivering 1360 lumens of luminous flux at 148 lm/W. It features a 5000K correlated color temperature with a 4-step MacAdam ellipse for precise color consistency and an 80 CRI. The module has a maximum current rating of 600mA and a viewing angle of 145°. Its dimensions are 259.00mm in length and 250.00mm in width, with a height of 6.60mm. Designed with a flat lens and a connector, this LED module is suitable for general lighting applications.
Additional Information
Series: LAM-SQ32BRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Box |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 259.00mm L x 250.00mm W |
| Type | LED Module |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 24V |
| Height | 6.60mm |
| Current - Test | 385mA |
| Viewing Angle | 145° |
| Lens Type | Flat |
| Current - Max | 600mA |
| Lumens/Watt @ Current - Test | 148 lm/W |
| CCT (K) | 5000K 4-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 35°C |
| Luminous Flux @ Current/Temperature | 1360lm (Typ) |
Request a Quote
Clients Also Buy

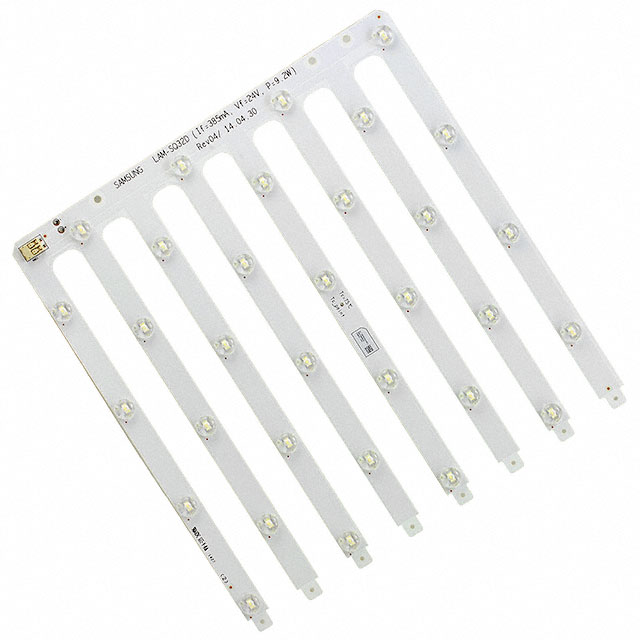

SI-B8P09526001
LED MOD LAM-SQ32B WHT RECT 6500K

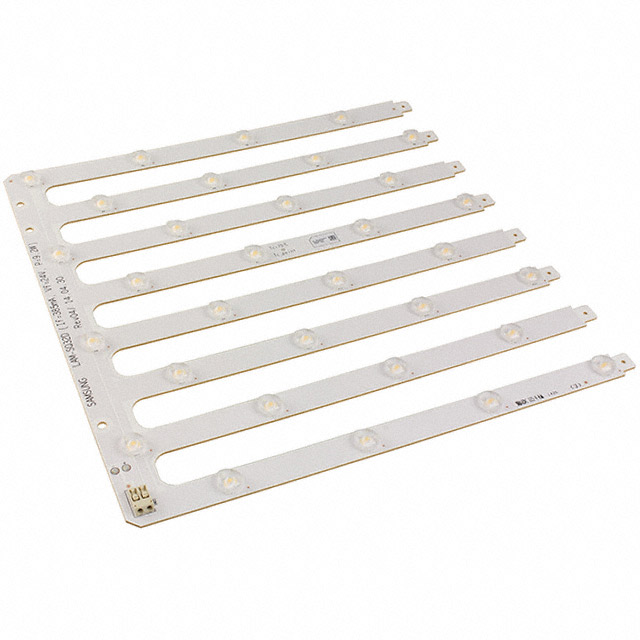

SI-B8T09526001
LED MOD LAM-SQ32B WHT RECT 4000K

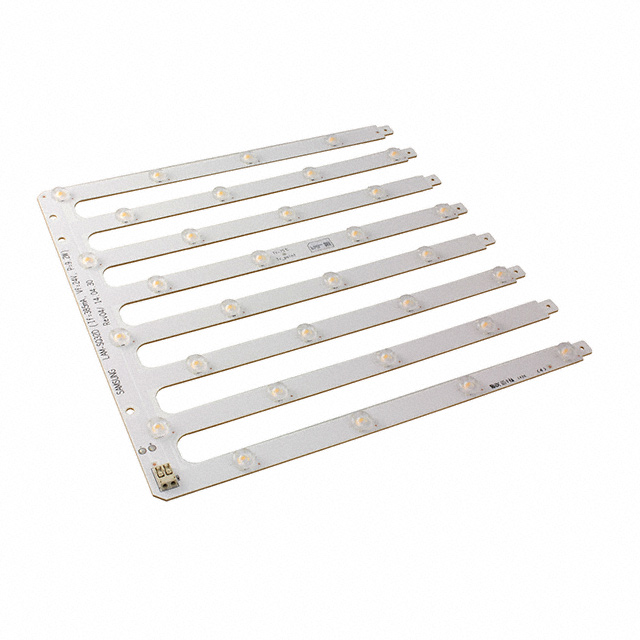

SI-B8U09526001
