SI-B8R08128001
LED MOD LT-H284A LNR STRP 5000KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

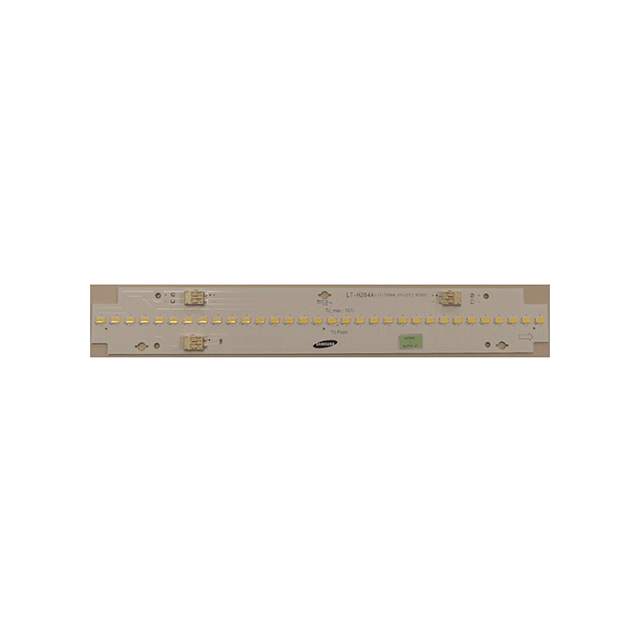

Samsung Semiconductor, Inc. LT-H284A Series LED Module. This cool white linear light strip offers a correlated color temperature (CCT) of 5000K with a 3-step MacAdam ellipse tolerance for consistent color. Featuring a 115° viewing angle and a CRI of 80, it delivers 1300 lumens (typical) at 700mA test current, achieving 160 lm/W. The module operates at a typical forward voltage of 11.6V and has a maximum current capability of 1.2A. Dimensions are 280.00mm length by 40.00mm width with a height of 5.60mm. This component is designed for applications in general lighting and architectural lighting. It is supplied in box packaging and includes a connector.
Additional Information
Series: LT-H284ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Box |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 280.00mm L x 40.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 11.6V |
| Height | 5.60mm |
| Current - Test | 700mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 1.2A |
| Lumens/Watt @ Current - Test | 160 lm/W |
| CCT (K) | 5000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 45°C |
| Luminous Flux @ Current/Temperature | 1300lm (Typ) |
