SI-B8R072280WW

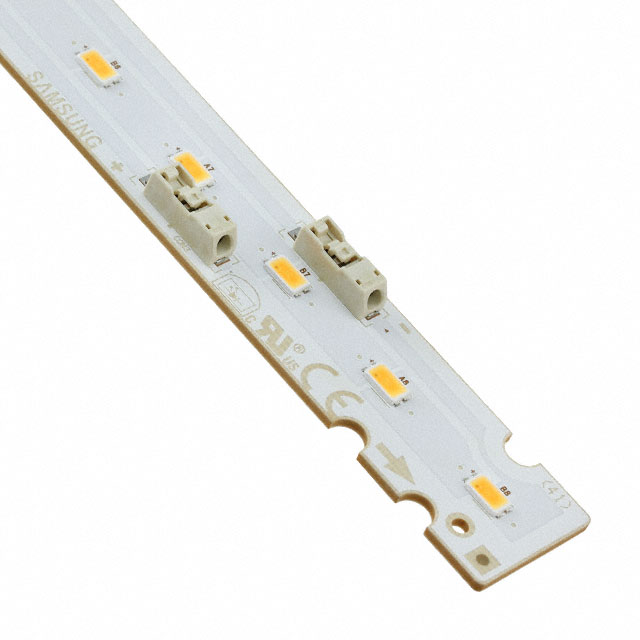

LED MOD LTM282BG2 COOL WHT STRIPManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More
Samsung Semiconductor, Inc. LT-M282B_G2 Cool White Linear LED Module. This component offers a 24.8V forward voltage and a maximum current of 360mA, with a typical test current of 300mA producing 1100 lumens. Engineered with a 4.40mm height and dimensions of 275.00mm L x 18.00mm W, this module features a flat lens and a 115° viewing angle. It operates at a 50°C test temperature, delivering 148 lm/W at its test current. The color temperature is 5000K with a 4-Step MacAdam Ellipse and a CRI of 80. This LED module is suitable for general lighting applications, automotive lighting, and architectural illumination. Packaged in a tray.
Additional Information
Series: LT-M282B_G2RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 275.00mm L x 18.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 24.8V |
| Height | 4.40mm |
| Current - Test | 300mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 360mA |
| Lumens/Watt @ Current - Test | 148 lm/W |
| CCT (K) | 5000K 4-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 50°C |
| Luminous Flux @ Current/Temperature | 1100lm (Typ) |
