SI-B8P09A280WW
LED MOD LT-R286A WHT RECT 6500KManufacturer: Samsung Semiconductor, Inc.
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

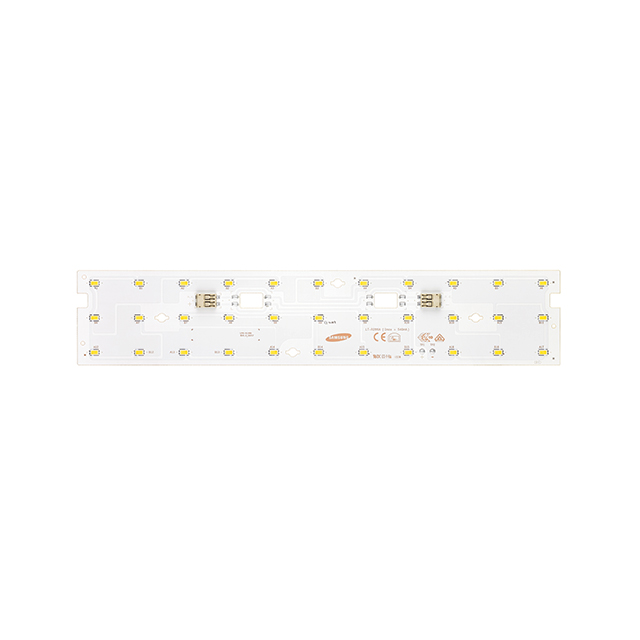

Samsung Semiconductor, Inc. presents the LT-R286A series LED Module, part number SI-B8P09A280WW. This cool white rectangular module offers a correlated color temperature (CCT) of 6500K, specified within a 4-Step MacAdam Ellipse. Designed with an 80 CRI, it delivers a typical luminous flux of 1501 lumens at a test current of 290mA and 50°C, achieving 160 lm/W. The module operates with a typical forward voltage of 32.3V and a maximum forward current of 540mA. Key features include an integrated connector and a flat lens. Dimensions are 280.00mm in length by 55.00mm in width, with a height of 5.80mm. This component is suitable for applications in general lighting and architectural lighting. It is supplied in tray packaging.
Additional Information
Series: LT-R286ARoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | With Connector |
| Packaging | Tray |
| Color | White, Cool |
| Wavelength | - |
| Size / Dimension | 280.00mm L x 55.00mm W |
| Type | LED Module |
| Configuration | Rectangle |
| Voltage - Forward (Vf) (Typ) | 32.3V |
| Height | 5.80mm |
| Current - Test | 290mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 540mA |
| Lumens/Watt @ Current - Test | 160 lm/W |
| CCT (K) | 6500K 4-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Light Emitting Surface (LES) | - |
| Temperature - Test | 50°C |
| Luminous Flux @ Current/Temperature | 1501lm (1350lm ~ 1650lm) |
