EC09P20V-217
ROTARY ENCODER MECHANICAL 20PPRManufacturer: Same Sky (Formerly CUI Devices)
Categories: Encoders
Quality Control: Learn More

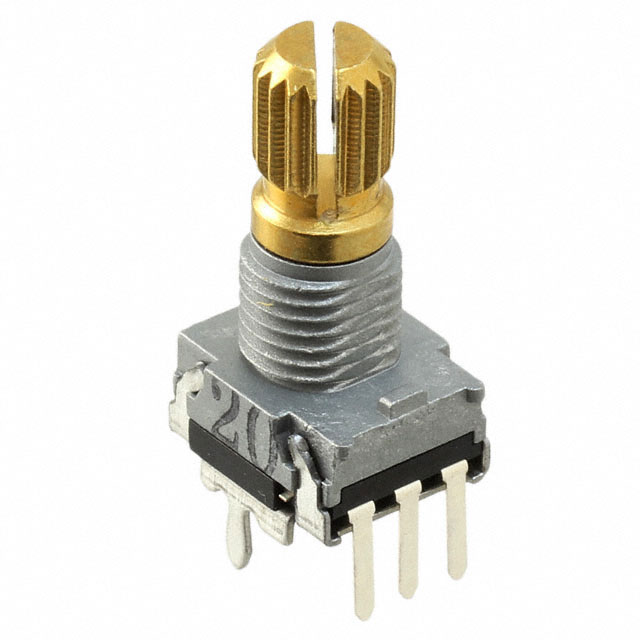

Same Sky (Formerly CUI Devices) EC09P20V-217 is a mechanical rotary encoder designed for precise positional feedback. This panel-mount, PCB through-hole component features a vertical orientation and a 1/4" diameter flatted end actuator with detents for tactile user interface. It provides 20 pulses per revolution in a quadrature (incremental) output format, enabling accurate directional and rotational data. The EC09P20V-217 is rated for a minimum rotational life of 100,000 cycles and terminates via PC pins. This encoder is suitable for applications in industrial automation, consumer electronics, and automotive control systems where reliable rotary input is critical.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:&mpn=EC09P20V-217&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Output Type | Quadrature (Incremental) |
| Mounting Type | Panel, PCB Through Hole |
| Orientation | Vertical |
| Termination Style | PC Pin |
| Voltage - Supply | - |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 20 |
| Actuator Type | 1/4"" Dia Flatted End |
| Built in Switch | No |
| Rotational Life (Cycles Min) | 100k |
| Programmable | Not Verified |
