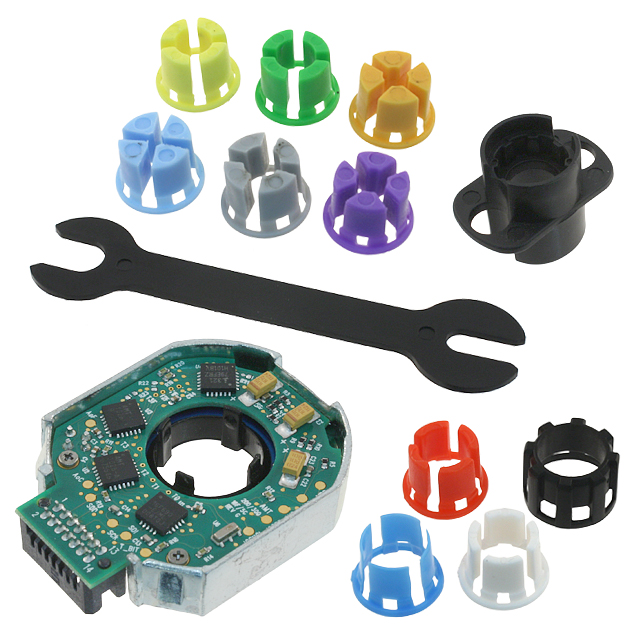

AMT303LD-V
ROTARY ENCODER INCREMENT PROGPPRManufacturer: Same Sky (Formerly CUI Devices)
Categories: Encoders
Quality Control: Learn More
The Same Sky AMT303LD-V is a programmable incremental rotary encoder featuring a right-angle, chassis-mount design suitable for motor control applications. This component, part of the AMT303 series, offers a 2-pole output with line driver capabilities for robust commutation signaling. Its output is configurable for pulses per revolution, providing flexibility in system integration. The encoder utilizes terminal pins for termination and operates with a 5V supply voltage. Industries benefiting from this component include industrial automation and robotics, where precise motor feedback is critical. The open-center actuator accommodates shaft diameters from 2mm to 8mm.
Additional Information
Series: AMT303RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:&mpn=AMT303LD-V&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bag |
| Output Type | Commutation, CW, 2 Pole, with Line Driver |
| Mounting Type | Chassis Mount, Motors |
| Orientation | Right Angle |
| Termination Style | Terminal Pins |
| Voltage - Supply | 5V |
| Encoder Type | Incremental |
| Detent | No |
| Pulses per Revolution | Programmable |
| Actuator Type | 2mm ~ 8mm Open Center |
| Built in Switch | No |
| Rotational Life (Cycles Min) | - |
| Programmable | Not Verified |
Request a Quote
Clients Also Buy

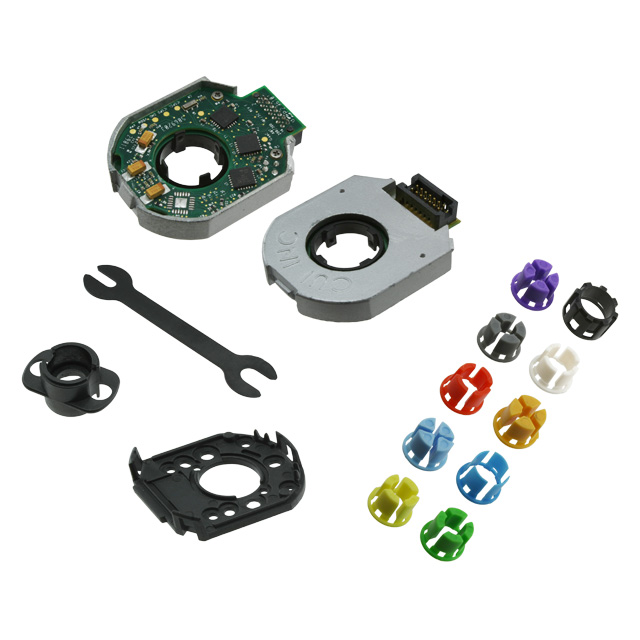

AMT303-V
