AEC11BR2E-25SA1-30C15P
ROTARY ENCODER MECHANICAL 15PPRManufacturer: Same Sky (Formerly CUI Devices)
Categories: Encoders
Quality Control: Learn More

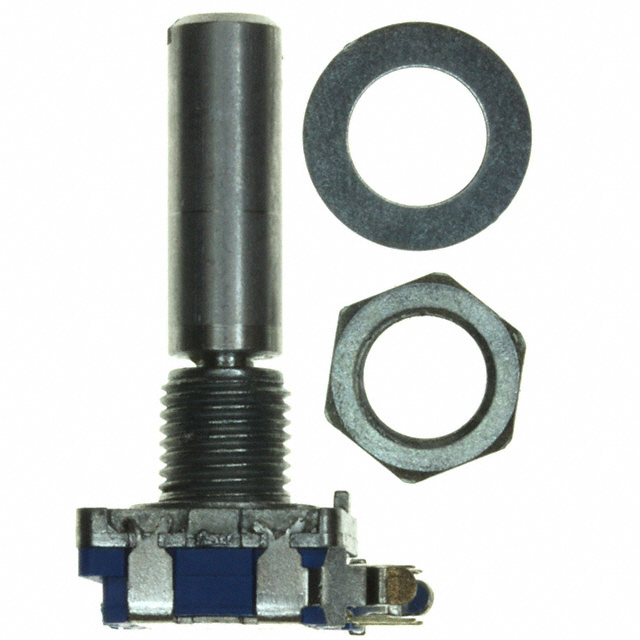

Same Sky (Formerly CUI Devices) AEC11BR2E-25SA1-30C15P is a mechanical rotary encoder designed for precise rotational sensing. This component features a 6mm diameter slotted end actuator and a right-angle orientation, suitable for panel or PCB through-hole mounting. The encoder delivers 15 pulses per revolution in a quadrature (incremental) output format. It includes a built-in switch for added functionality and a detented mechanism for tactile feedback. Engineered for durability, the AEC11BR2E-25SA1-30C15P offers a minimum rotational life of 15,000 cycles. The termination style is PC pin, and it operates with a supply voltage of 5V. This encoder is commonly utilized in industrial automation and control systems.
Additional Information
Series: -RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:&mpn=AEC11BR2E-25SA1-30C15P&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Bulk |
| Output Type | Quadrature (Incremental) |
| Mounting Type | Panel, PCB Through Hole |
| Orientation | Right Angle |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Encoder Type | Mechanical |
| Detent | Yes |
| Pulses per Revolution | 15 |
| Actuator Type | 6mm Dia Slotted End |
| Built in Switch | Yes |
| Rotational Life (Cycles Min) | 15k |
| Programmable | Not Verified |
