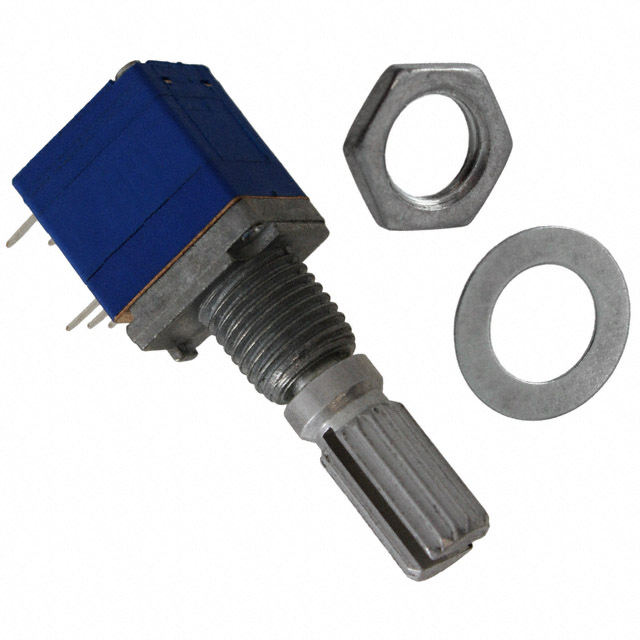

ACZ09BR2E-20KQA1-30C15P
ROTARY ENCODER INCREMENT 15PPRManufacturer: Same Sky (Formerly CUI Devices)
Categories: Encoders
Quality Control: Learn More
Rotary Encoder Incremental 15 Quadrature (Incremental) Right Angle
Additional Information
Series: ACZ09RoHS Status: ROHS3 CompliantManufacturer Lead Time: 14 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:&mpn=ACZ09BR2E-20KQA1-30C15P&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Box |
| Output Type | Quadrature (Incremental) |
| Mounting Type | Panel, PCB Through Hole |
| Orientation | Right Angle |
| Termination Style | PC Pin |
| Voltage - Supply | 5V |
| Encoder Type | Incremental |
| Detent | Yes |
| Pulses per Revolution | 15 |
| Actuator Type | 6mm Dia Knurled End |
| Built in Switch | Yes |
| Rotational Life (Cycles Min) | 30k |
| Programmable | Not Verified |
