CS2012U
CURRENT SENSOR,OPEN LOOP,20A,+12Manufacturer: Same Sky (Formerly CUI Devices)
Categories: Current Sensors
Quality Control: Learn More
Current Sensor 20A 1 Channel Open Loop Unidirectional Module
Additional Information
Series: CSXX12URoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:&mpn=CS2012U&lbl=1&lbc=000000&q3=1)
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Polarization | Unidirectional |
| Sensitivity | - |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 40kHz |
| Accuracy | ±1.9% |
| Operating Temperature | -10°C ~ 75°C |
| Voltage - Supply | 11.4V ~ 12.6V |
| Response Time | 3µs |
| Sensor Type | Open Loop |
| Linearity | ±0.5% |
| For Measuring | AC |
| Current - Supply (Max) | 25mA |
| Current - Sensing | 20A |
| Number of Channels | 1 |
Request a Quote
Clients Also Buy

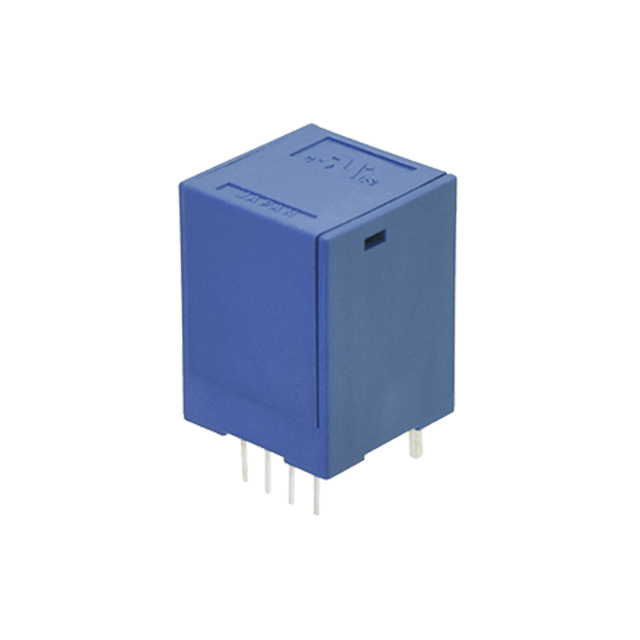

CS0312U
