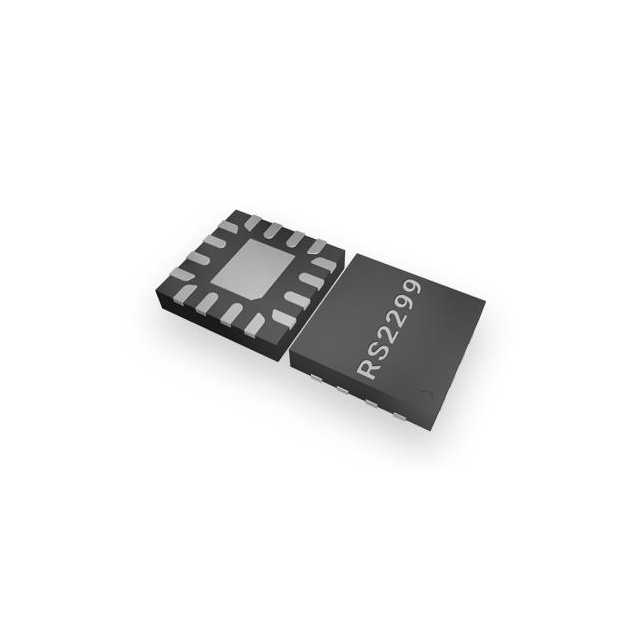

RS2299XTQC16
IC SWITCH SPDT X 4 8OHM 16QFNManufacturer: Runic Technology
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
4 Circuit IC Switch 2:1 8Ohm 16-QFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| On-State Resistance (Max) | 8Ohm |
| -3db Bandwidth | 300MHz |
| Supplier Device Package | 16-QFN (3x3) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | - |
| Crosstalk | - |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 150mOhm (Typ) |
| Switch Time (Ton, Toff) (Max) | 30ns (Typ), 25ns (Typ) |
| Channel Capacitance (CS(off), CD(off)) | 5pF |
| Current - Leakage (IS(off)) (Max) | 1µA |
| Number of Circuits | 4 |
Request a Quote
Clients Also Buy

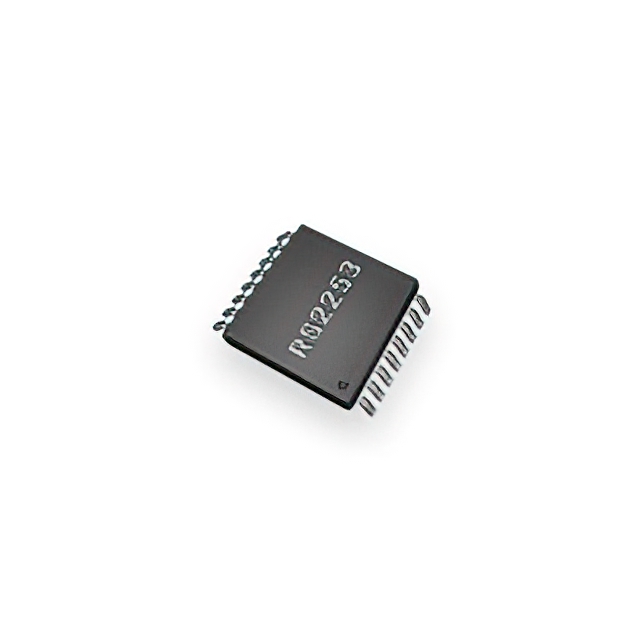

RS2253XTSS16
