RPI-5100
SENSOR OPT SLOT TRANSISTOR MODULManufacturer: Rohm Semiconductor
Categories: Transistor Output
Quality Control: Learn More

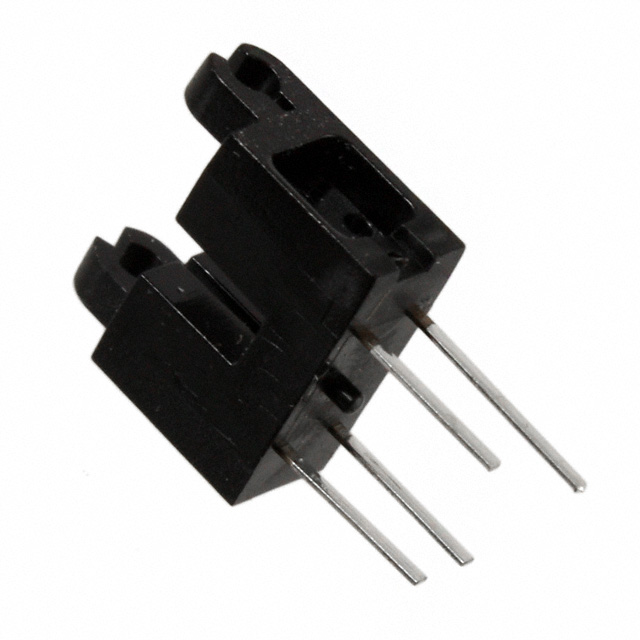

The Rohm Semiconductor RPI-5100 is an optical sensor module featuring a transistor output. This slot-type sensor, with PC pins for through-hole mounting, is designed for applications requiring precise object detection. It offers a maximum collector current (Ic) of 30 mA and a forward current (If) of up to 50 mA. The module operates within a temperature range of -25°C to 85°C and boasts a response time of 10µs. With a collector-emitter breakdown voltage of 30 V, the RPI-5100 is suitable for use in industrial automation, consumer electronics, and automotive systems where reliable optical sensing is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, PC Pins, Slot Type |
| Sensing Distance | - |
| Sensing Method | - |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C |
| Output Configuration | Transistor |
| Response Time | 10µs |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
