RPI-392
SENSOR OPT SLOT TRANSISTOR MODULManufacturer: Rohm Semiconductor
Categories: Transistor Output
Quality Control: Learn More

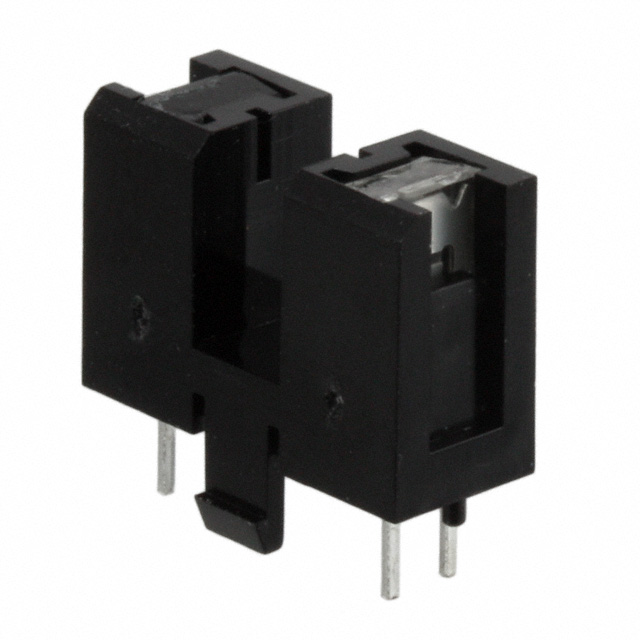

The Rohm Semiconductor RPI-392 is an optical sensor module featuring a transistor output. This through-hole mounted component offers a sensing distance of 0.157 inches (4mm) and operates with a maximum collector current of 30 mA and a maximum DC forward current of 50 mA. The collector emitter breakdown voltage is rated at 30 V. With a response time of 10µs, this module is suitable for applications requiring precise optical detection. It is supplied in bulk packaging and operates within an ambient temperature range of -25°C to 85°C. This component type is commonly utilized in industrial automation, consumer electronics, and security systems for object detection and position sensing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, PC Pins, Slot Type |
| Sensing Distance | 0.157"" (4mm) |
| Sensing Method | - |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C |
| Output Configuration | Transistor |
| Response Time | 10µs |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
