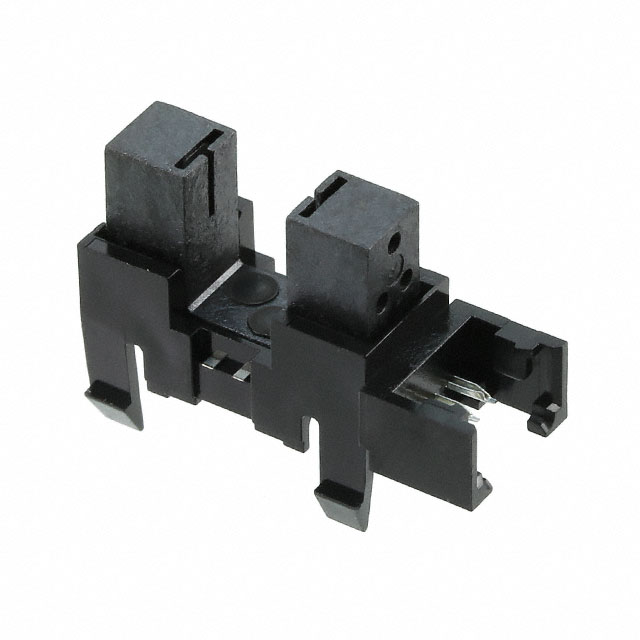

RPI-2501
SENSOR OPT SLOT PHOTOTRANS MODULManufacturer: Rohm Semiconductor
Categories: Transistor Output
Quality Control: Learn More
Rohm Semiconductor RPI-2501 is a through-beam optical sensor featuring a slotted module design with a phototransistor output. This electronic component offers a sensing distance of 1.6mm. Key electrical specifications include a maximum collector current (Ic) of 30 mA and a maximum DC forward current (If) of 35 mA. The device operates with a collector-emitter breakdown voltage of up to 30 V and exhibits a response time of 10µs. Mounting is achieved via a through-hole configuration. The RPI-2501 is suitable for applications in industrial automation, consumer electronics, and office equipment where precise object detection is required. Operating temperature range is from -25°C to 85°C. This component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Slotted |
| Sensing Distance | 1.6mm |
| Sensing Method | Through-Beam |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C |
| Output Configuration | Phototransistor |
| Response Time | 10µs |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 35 mA |
