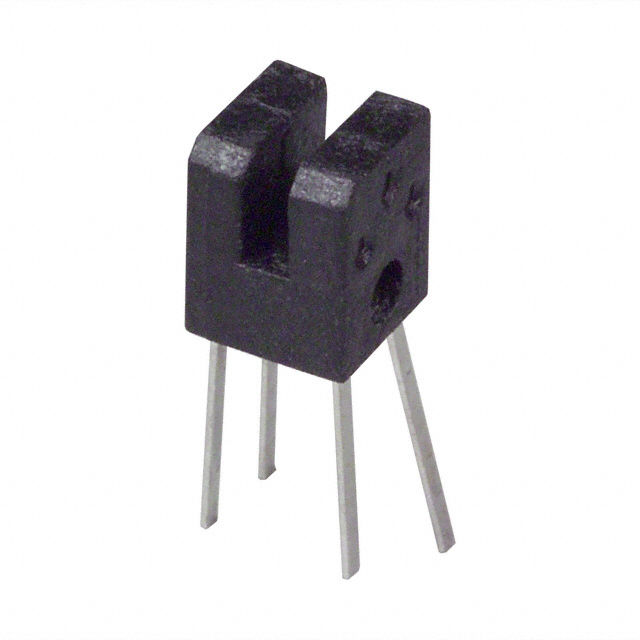

RPI-131
SENSOR OPT SLOT PHOTOTRAN PCB MTManufacturer: Rohm Semiconductor
Categories: Transistor Output
Quality Control: Learn More
Rohm Semiconductor RPI-131 is a through-beam optical sensor featuring a phototransistor output. This component is designed for PCB mounting and offers a sensing distance of 0.047 inches (1.2mm). The RPI-131 supports a maximum collector current (Ic) of 30 mA and a maximum DC forward current (If) of 50 mA. Its collector-emitter breakdown voltage reaches a maximum of 30 V. With a response time of 10µs for both rise and fall, this component is suitable for applications requiring precise optical detection. The operating temperature range is from -25°C to 85°C. This sensor is commonly utilized in industrial automation, security systems, and consumer electronics where non-contact sensing is critical. The RPI-131 is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | PCB Mount |
| Sensing Distance | 0.047"" (1.2mm) |
| Sensing Method | Through-Beam |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C |
| Output Configuration | Phototransistor |
| Response Time | 10µs, 10µs |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
