RPI-129BN
SENSOR OPT SLOT PHOTOTRANS MODULManufacturer: Rohm Semiconductor
Categories: Transistor Output
Quality Control: Learn More

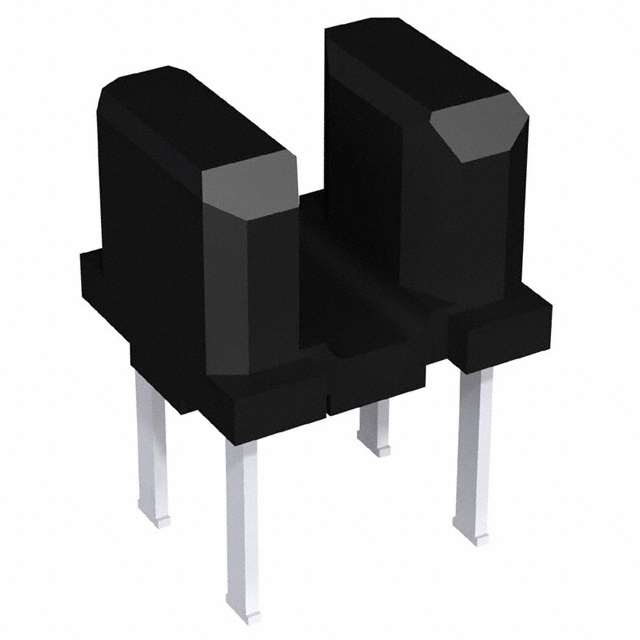

Rohm Semiconductor RPI-129BN is a slotted optical sensor module featuring a phototransistor output. This component is designed for through-hole mounting and operates with a maximum collector current (Ic) of 30 mA and a maximum DC forward current (If) of 50 mA. The RPI-129BN offers a collector-emitter breakdown voltage of 30 V and a response time of 10 µs. It is supplied in tube packaging and operates within an ambient temperature range of -25°C to 85°C. This device is suitable for applications in industrial automation, consumer electronics, and automotive systems where precise object detection or position sensing is required.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | Slotted Module |
| Sensing Distance | - |
| Sensing Method | - |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 85°C |
| Output Configuration | Phototransistor |
| Response Time | 10µs |
| Current - Collector (Ic) (Max) | 30 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Current - DC Forward (If) (Max) | 50 mA |
