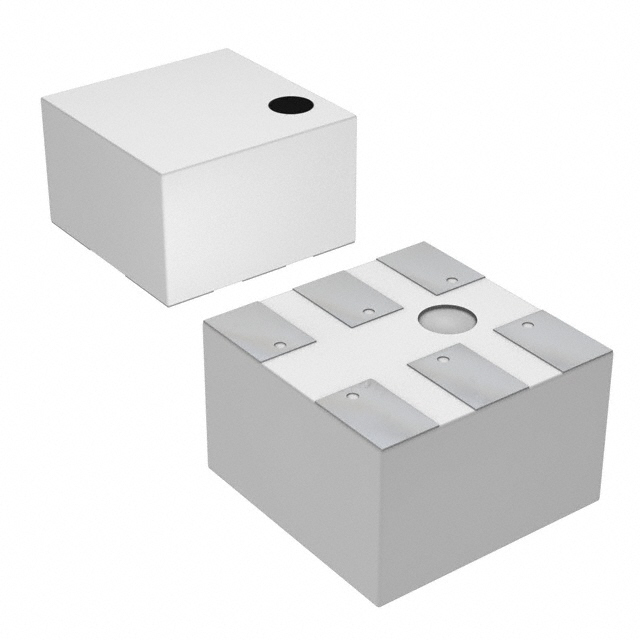

RPI-1031
SENSOR OPTO TRANS IMM REFL SMDManufacturer: Rohm Semiconductor
Categories: Tilt Switches
Quality Control: Learn More
Rohm Semiconductor RPI-1031 is an optoelectronic component featuring an integrated infrared LED and phototransistor for immediate reflection sensing. Designed for surface mount applications, this component is supplied in a 6-SMD package on tape and reel. The output is NPN type with a maximum current of 30mA. It operates from a 5V supply and functions within an ambient temperature range of -25°C to 85°C. This device is suitable for applications requiring precise object detection and position sensing, commonly found in automation, robotics, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD |
| Output Type | NPN |
| Mounting Type | Surface Mount |
| Current - Output | 30mA |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply | 5V |
| Operating Angle | ±90° |
Request a Quote
Clients Also Buy

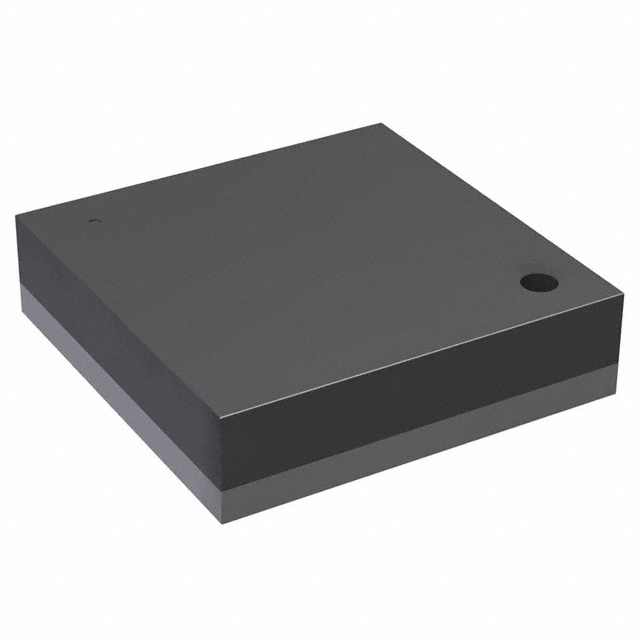

RPI-1040
