BDJ0851HFV-TR
THERMOSTAT 85DEGC ACT HI HVSOF5Manufacturer: Rohm Semiconductor
Categories: Thermostats - Solid State
Quality Control: Learn More
The Rohm Semiconductor BDJ0851HFV-TR is a solid-state thermostat featuring an 85°C activation temperature. This component is designed for surface mounting within a 5-HVSOF package (SOT-665). It operates with a supply voltage range of 2.4V to 5.5V and exhibits a low supply current of 7.5µA. The output stage is an open-drain configuration, providing an active high signal when the trip temperature threshold of 85°C is exceeded. The BDJ0851HFV-TR offers an accuracy of ±2.5°C and a maximum output current of 5mA. Its operating temperature range spans from -30°C to 100°C, making it suitable for applications in consumer electronics and industrial control systems where thermal monitoring is critical. The device is supplied in tape and reel packaging for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 15 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-665 |
| Output Type | Open Drain |
| Mounting Type | Surface Mount |
| Output | Active High |
| Accuracy | ±2.5°C |
| Operating Temperature | -30°C ~ 100°C |
| Current - Supply | 7.5µA |
| Switching Temperature | 85°C |
| Current - Output (Max) | 5mA |
| Supplier Device Package | 5-HVSOF |
| Output Function | OverTemp, VTemp |
| Trip Temperature Threshold | Hot |
| Selectable Hysteresis | No |
| Voltage - Supply | 2.4 V ~ 5.5 V |
Request a Quote
Clients Also Buy
BDE1100G-TR
THERMOSTAT 110DEGC ACT LOW 5SSOP

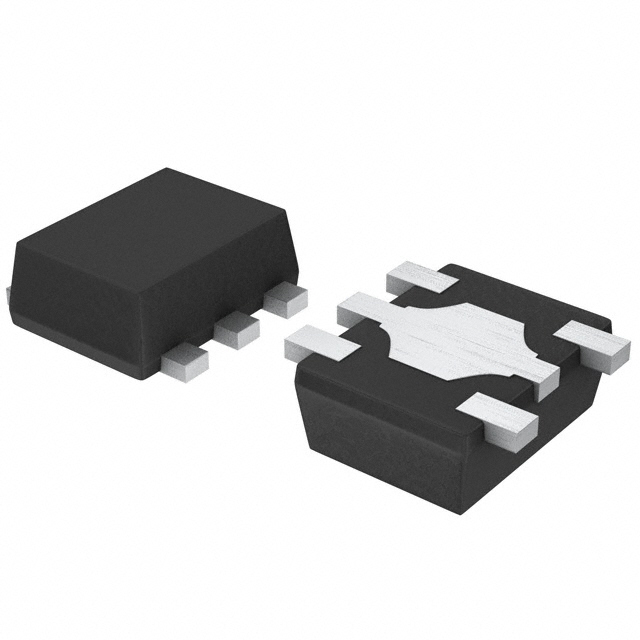

BDJ0550HFV-TR
THERMOSTAT 55DEGC ACT LOW HVSOF5

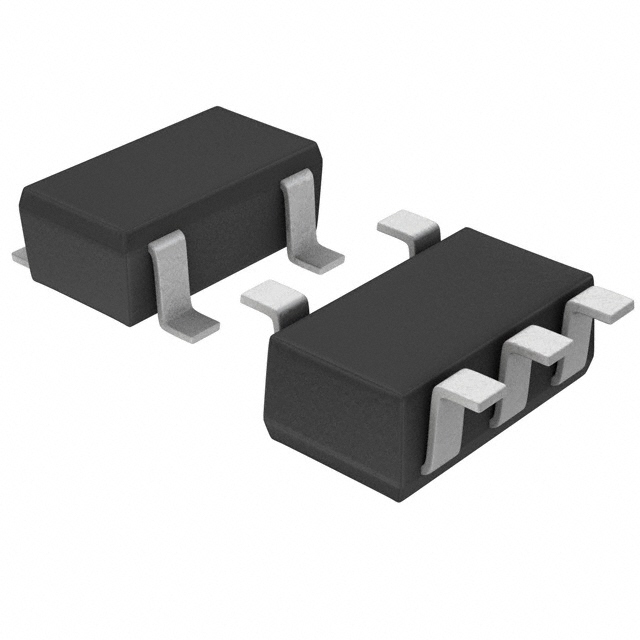

BDE0800G-TR
