BU52177GXZ-E2
MAGNETIC SWITCH OMNIPOLARManufacturer: Rohm Semiconductor
Categories: Switches (Solid State)
Quality Control: Learn More
The Rohm Semiconductor BU52177GXZ-E2 is a digital Hall effect sensor offering omnipolar switching functionality. This CMOS device operates from a supply voltage range of 1.65V to 3.6V, with a low supply current of 8µA maximum. The output type is CMOS, capable of sourcing a maximum current of 500µA. Designed for surface mounting, it is provided in a 4-XFBGA, CSPBGA package on tape and reel. The BU52177GXZ-E2 exhibits a sensing range with trip and release points of ±19mT and ±10.1mT respectively, responding to both north and south magnetic poles. Operating across a temperature range of -40°C to 85°C, this component is suitable for applications in consumer electronics and industrial automation where precise magnetic field detection is required.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-XFBGA, CSPBGA |
| Output Type | CMOS |
| Polarization | North Pole, South Pole |
| Mounting Type | Surface Mount |
| Function | Omnipolar Switch |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.65V ~ 3.6V |
| Technology | Hall Effect |
| Sensing Range | ±19mT Trip, ±10.1mT Release |
| Current - Output (Max) | 500µA |
| Current - Supply (Max) | 8µA |
| Test Condition | 25°C |
Request a Quote
Clients Also Buy
BD53108G-CZTL
AUTOMOTIVE HALL EFFECT SWITCH(S

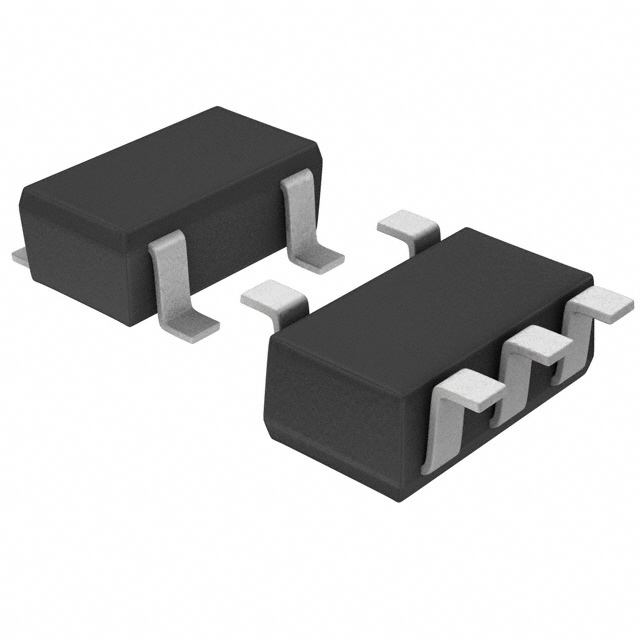

BD7411G-TR
MAGNETIC SWITCH OMNIPOLAR 5SSOP

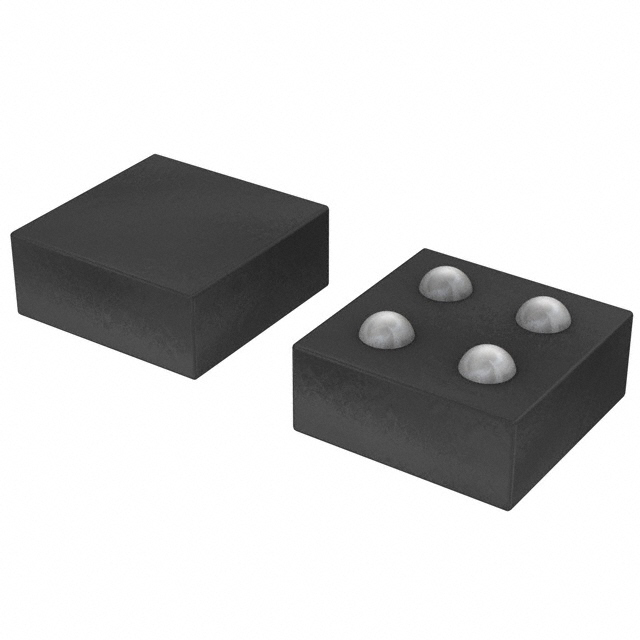

BU52002GUL-E2
