BU52015GUL-E2
MAG SWITCH OMNIPOLAR 4VCSP50L1Manufacturer: Rohm Semiconductor
Categories: Switches (Solid State)
Quality Control: Learn More

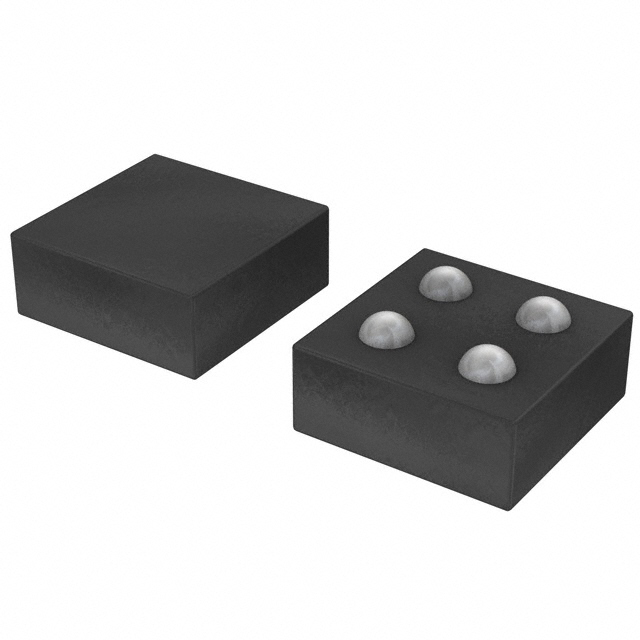

The Rohm Semiconductor BU52015GUL-E2 is a digital, omnipolar Hall effect switch designed for surface mount applications. This 4-VCSP50L1 (1.1x1.1) packaged component operates on a supply voltage range of 1.65V to 3.3V, with a maximum supply current of 8µA. The output stage provides a push-pull configuration, capable of sourcing up to 500µA. This device exhibits a sensing range of ±5mT for trip and ±0.6mT for release, responding to both north and south magnetic poles. Its robust design is suitable for operation across an ambient temperature range of -40°C to 85°C. Typically found in consumer electronics and industrial automation, the BU52015GUL-E2 is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-UFBGA, CSPBGA |
| Output Type | Push-Pull |
| Polarization | North Pole, South Pole |
| Mounting Type | Surface Mount |
| Function | Omnipolar Switch |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.65V ~ 3.3V |
| Technology | Hall Effect |
| Sensing Range | ±5mT Trip, ±0.6mT Release |
| Current - Output (Max) | 500µA |
| Current - Supply (Max) | 8µA |
| Supplier Device Package | 4-VCSP50L1 (1.1x1.1) |
| Test Condition | 25°C |
