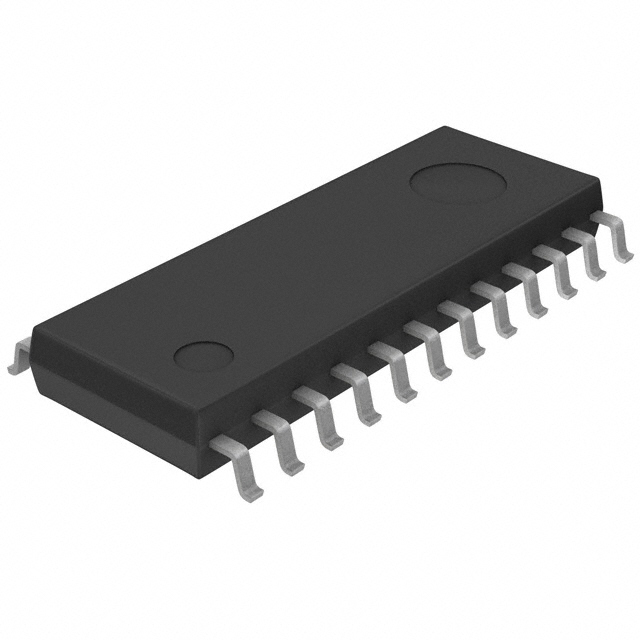

BD9270F-E2
IC INVERTER CTLR DC-AC 24-SOPManufacturer: Rohm Semiconductor
Categories: Specialized
Quality Control: Learn More
Rohm Semiconductor's BD92270F-E2 is a highly integrated inverter controller PMIC. This device is designed for DC-AC conversion applications with a wide supply voltage range of 8.5V to 19V. Featuring a low standby current of 30µA, the BD92270F-E2 is suitable for power-sensitive designs. The PMIC is housed in a 24-SOIC package with a 5.40mm width, facilitating surface mount assembly. Its operating temperature range is -40°C to 85°C. This component is commonly employed in industrial automation and LED lighting systems. The BD92270F-E2 is supplied in a Tape & Reel (TR) package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SOIC (0.213"", 5.40mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 8.5V ~ 19V |
| Applications | Inverter Controller |
| Current - Supply | 30µA |
| Supplier Device Package | 24-SOP |
