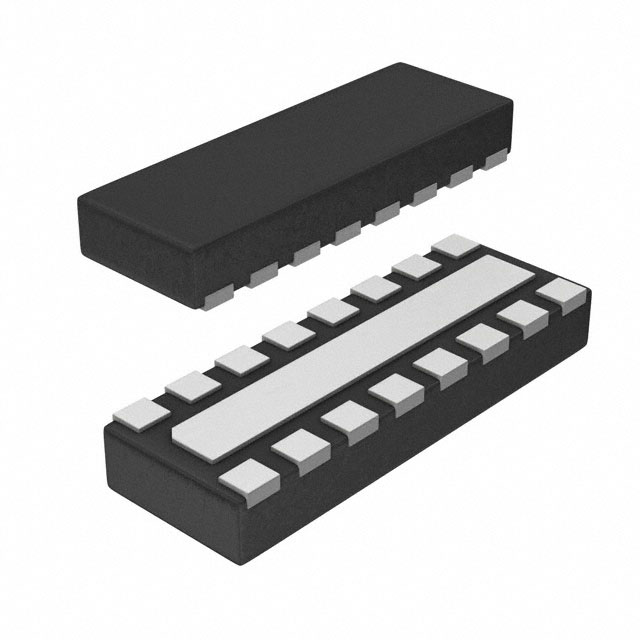

BH6260MWX-E2
IC INVERTER SWITCH SPST 16USONManufacturer: Rohm Semiconductor
Categories: Special Purpose
Quality Control: Learn More
Rohm Semiconductor BH6260MWX-E2 is a USB 2.0 compliant, 2-channel switch IC designed for high-speed data signal routing. This Surface Mount device, housed in a 16-UFDFN Exposed Pad (USON016X3315) package, offers a low 13 Ohm on-state resistance per channel. Its single supply voltage range is 2.9V to 3.7V, with an operating temperature range of -40°C to 85°C. The BH6260MWX-E2 integrates a USB and UART switch functionality, enabling efficient signal multiplexing and demultiplexing in compact designs. This component is suitable for applications in consumer electronics, mobile devices, and automotive systems where robust USB and UART signal management is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | USB 2.0 |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-UFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | USB, UART |
| On-State Resistance (Max) | 13Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | USON016X3315 |
| Voltage - Supply, Single (V+) | 2.9V ~ 3.7V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | SPST |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Channels | 2 |
