DTB543ZMT2L

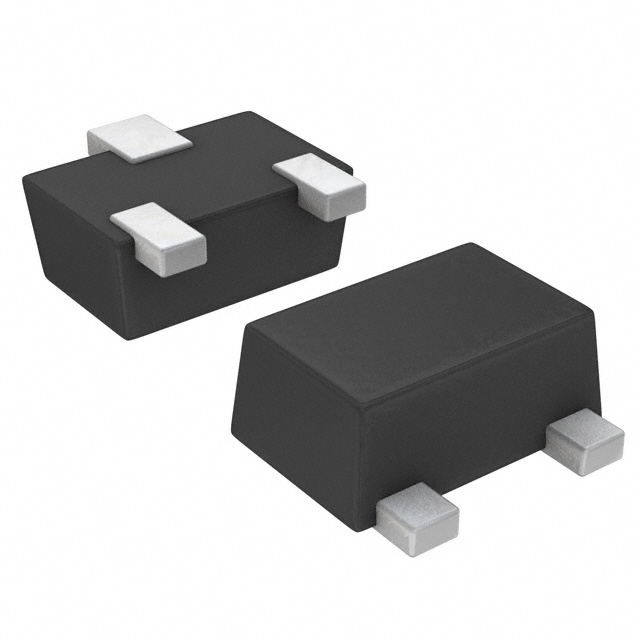

TRANS PREBIAS PNP 12V 0.5A VMT3Manufacturer: Rohm Semiconductor
Categories: Single, Pre-Biased Bipolar Transistors
Quality Control: Learn More
Enhance your designs with the Rohm Semiconductor DTB543ZMT2L, a PNP pre-biased bipolar junction transistor from the DTB543Z series. This component offers a 12V collector-emitter breakdown voltage (Vce) and a maximum collector current (Ic) of 500mA. Featuring a transition frequency (fT) of 260 MHz and a power dissipation of 150mW, it is suitable for applications requiring efficient switching and amplification. The integrated base resistors (R1 = 4.7 kOhms, R2 = 47 kOhms) simplify circuit design. This device is supplied in a VMT3 surface mount package, delivered on tape and reel. Its specifications make it a valuable component in consumer electronics and industrial control systems.
Additional Information
Series: DTB543ZRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-723 |
| Mounting Type | Surface Mount |
| Transistor Type | PNP - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 5mA, 100mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 140 @ 100mA, 2V |
| Supplier Device Package | VMT3 |
| Current - Collector (Ic) (Max) | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 12 V |
| Power - Max | 150 mW |
| Frequency - Transition | 260 MHz |
| Resistor - Base (R1) | 4.7 kOhms |
| Resistor - Emitter Base (R2) | 47 kOhms |
