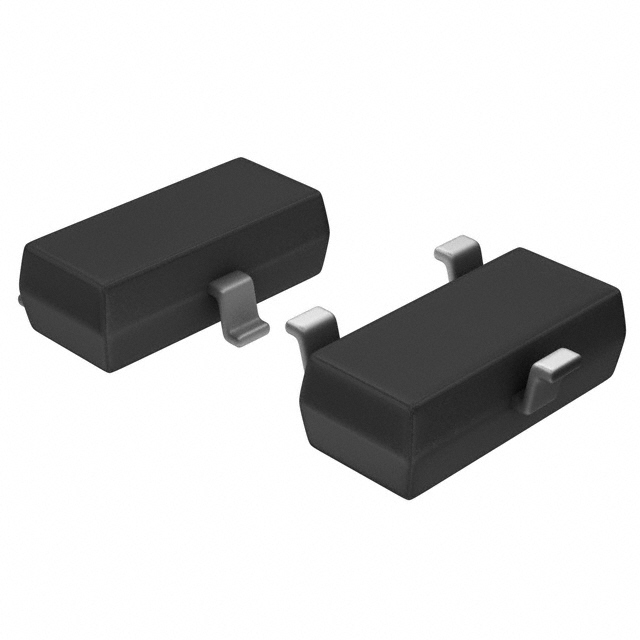

DTA115TKAT146
TRANS PREBIAS PNP 50V 0.1A SMT3Manufacturer: Rohm Semiconductor
Categories: Single, Pre-Biased Bipolar Transistors
Quality Control: Learn More
Rohm Semiconductor's DTA115T series PNP pre-biased bipolar transistor, part number DTA115TKAT146, is supplied in an SMT3 package. This device offers a 50V collector-emitter breakdown voltage and a maximum collector current of 100mA. It features a transition frequency of 250 MHz and a maximum power dissipation of 200mW. The integrated base resistor (R1) is 100 kOhms, facilitating simplified circuit design. This transistor is suitable for applications in consumer electronics and industrial automation. It is available in Tape & Reel packaging.
Additional Information
Series: DTA115TRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Transistor Type | PNP - Pre-Biased |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 100µA, 1mA |
| Current - Collector Cutoff (Max) | 500nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1mA, 5V |
| Supplier Device Package | SMT3 |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Power - Max | 200 mW |
| Frequency - Transition | 250 MHz |
| Resistor - Base (R1) | 100 kOhms |
