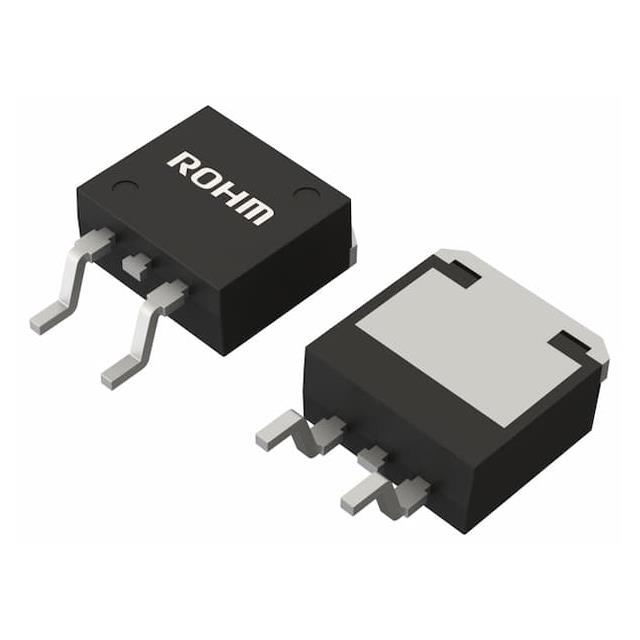

RGW40NL65HRBTL
IGBT TRENCH FS 650V 48A TO263LManufacturer: Rohm Semiconductor
Categories: Single IGBTs
Quality Control: Learn More
IGBT Trench Field Stop 650 V 48 A 144 W Surface Mount TO-263L
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 20A |
| Supplier Device Package | TO-263L |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 33ns/129ns |
| Switching Energy | 110µJ (on), 160µJ (off) |
| Test Condition | 400V, 10A, 10Ohm, 15V |
| Gate Charge | 59 nC |
| Grade | Automotive |
| Current - Collector (Ic) (Max) | 48 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector Pulsed (Icm) | 80 A |
| Power - Max | 144 W |
| Qualification | AEC-Q101 |
