RGTH60TS65DGC13
IGBT TRENCH FS 650V 58A TO247Manufacturer: Rohm Semiconductor
Categories: Single IGBTs
Quality Control: Learn More
IGBT Trench Field Stop 650 V 58 A 194 W Through Hole TO-247
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 58 ns |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 30A |
| Supplier Device Package | TO-247 |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 27ns/105ns |
| Switching Energy | - |
| Test Condition | 400V, 30A, 10Ohm, 15V |
| Gate Charge | 58 nC |
| Current - Collector (Ic) (Max) | 58 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector Pulsed (Icm) | 120 A |
| Power - Max | 194 W |
Request a Quote
Clients Also Buy

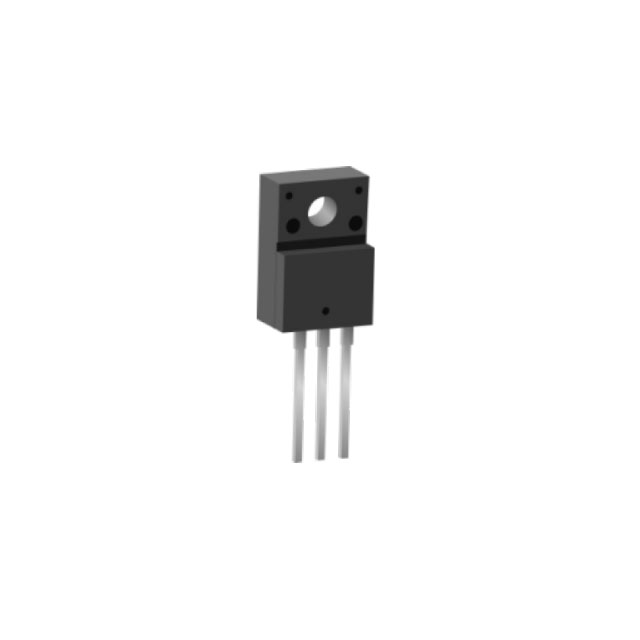

RGT30TM65DGC9
