RGA80TRX2HRC15
10 SHORT-CIRCUIT TOLERANCE, 1200Manufacturer: Rohm Semiconductor
Categories: Single IGBTs
Quality Control: Learn More

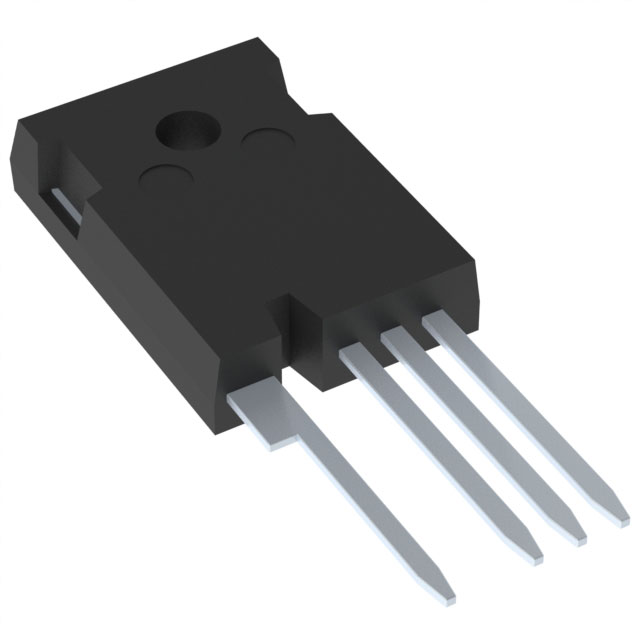

Rohm Semiconductor RGA80TRX2HRC15 is a Trench Field Stop IGBT designed for high-voltage applications. This automotive-grade component features a collector-emitter breakdown voltage of 1200 V and a continuous collector current of 105 A, with a pulsed capability of 120 A. The RGA80TRX2HRC15 offers a maximum power dissipation of 468 W and exhibits low on-state voltage (Vce(on)) of 2V at 15V Vge and 40A Ic. Switching characteristics include turn-on delay (Td(on)) of 78 ns and turn-off delay (Td(off)) of 329 ns at 25°C, with corresponding switching energies of 1.36 mJ (on) and 3.36 mJ (off) under test conditions of 800V, 40A, 10 Ohm, and 15V. Gate charge is specified at 259 nC. Packaged in a TO-247-4L through-hole configuration, this device is rated to operate within a temperature range of -40°C to 175°C (TJ) and is AEC-Q101 qualified. Its robust construction and performance parameters make it suitable for demanding automotive power systems and industrial motor control applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-4 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 40A |
| Supplier Device Package | TO-247-4L |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 78ns/329ns |
| Switching Energy | 1.36mJ (on), 3.36mJ (off) |
| Test Condition | 800V, 40A, 10Ohm, 15V |
| Gate Charge | 259 nC |
| Grade | Automotive |
| Current - Collector (Ic) (Max) | 105 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 120 A |
| Power - Max | 468 W |
| Qualification | AEC-Q101 |
