US5U2TR
MOSFET N-CH 30V 1.4A TUMT5Manufacturer: Rohm Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More

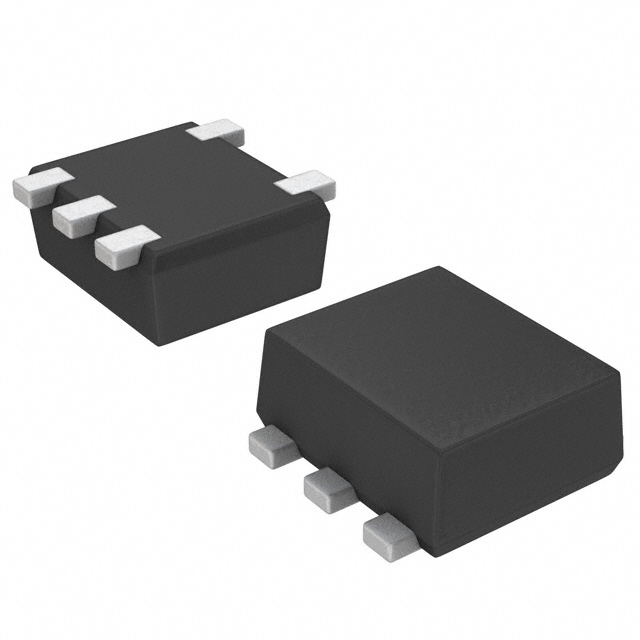

N-Channel 30 V 1.4A (Ta) 1W (Ta) Surface Mount TUMT5
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD (5 Leads), Flat Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 1.4A (Ta) |
| Rds On (Max) @ Id, Vgs | 240mOhm @ 1.4A, 10V |
| FET Feature | Schottky Diode (Isolated) |
| Power Dissipation (Max) | 1W (Ta) |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Supplier Device Package | TUMT5 |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 2 nC @ 5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 70 pF @ 10 V |
