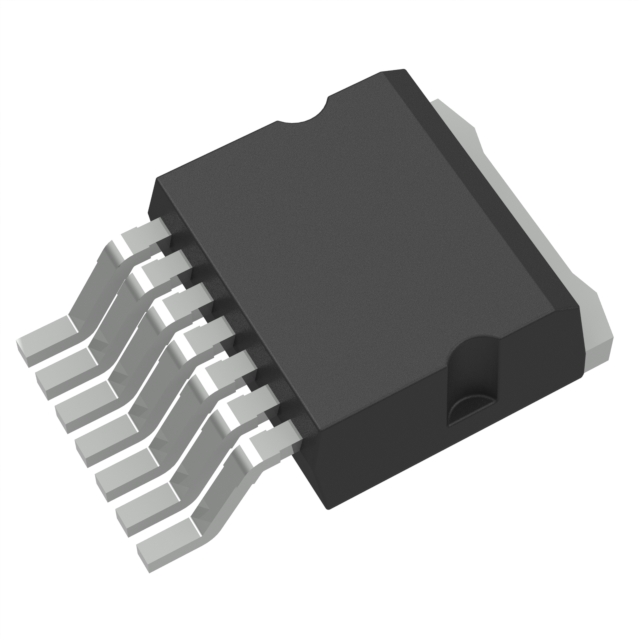

SCT4062KWAHRTL
1200V, 24A, 7-PIN SMD, TRENCH-STManufacturer: Rohm Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 1200 V 24A (Tc) 93W Surface Mount TO-263-7LA
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Mounting Type | Surface Mount |
| Operating Temperature | 175°C (TJ) |
| Technology | SiC (Silicon Carbide Junction Transistor) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 24A (Tc) |
| Rds On (Max) @ Id, Vgs | 81mOhm @ 12A, 18V |
| FET Feature | - |
| Power Dissipation (Max) | 93W |
| Vgs(th) (Max) @ Id | 4.8V @ 6.45mA |
| Supplier Device Package | TO-263-7LA |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 18V |
| Vgs (Max) | +21V, -4V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Gate Charge (Qg) (Max) @ Vgs | 64 nC @ 18 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1498 pF @ 800 V |
| Qualification | AEC-Q101 |
