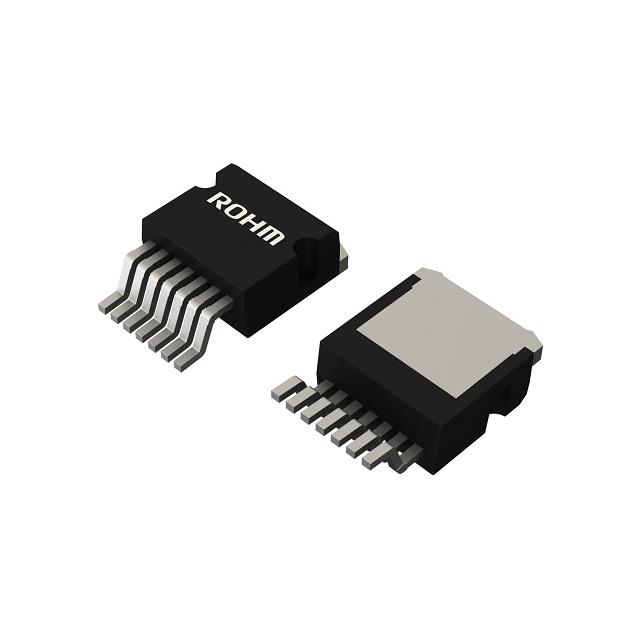

SCT4045DWAHRTL
750V, 31A, 7-PIN SMD, TRENCH-STRManufacturer: Rohm Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 750 V 31A (Tc) Surface Mount TO-263-7LA
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Mounting Type | Surface Mount |
| Operating Temperature | 175°C (TJ) |
| Technology | SiC (Silicon Carbide Junction Transistor) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 31A (Tc) |
| Rds On (Max) @ Id, Vgs | 59mOhm @ 17A, 18V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Vgs(th) (Max) @ Id | 4.8V @ 8.89mA |
| Supplier Device Package | TO-263-7LA |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 18V |
| Vgs (Max) | +21V, -4V |
| Drain to Source Voltage (Vdss) | 750 V |
| Gate Charge (Qg) (Max) @ Vgs | 63 nC @ 18 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1460 pF @ 500 V |
| Qualification | AEC-Q101 |
