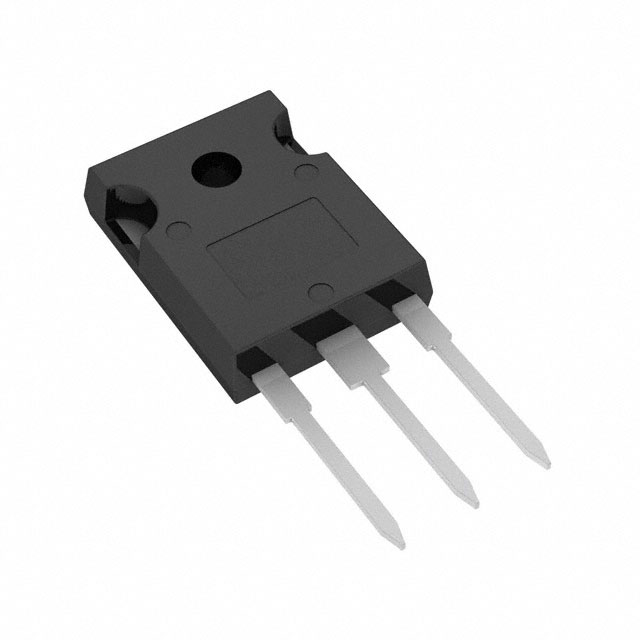

SCT2450KEHRC11
1200V, 10A, THD, SILICON-CARBIDEManufacturer: Rohm Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 1200 V 10A (Tc) 85W (Tc) Through Hole TO-247N
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | 175°C (TJ) |
| Technology | SiCFET (Silicon Carbide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 10A (Tc) |
| Rds On (Max) @ Id, Vgs | 585mOhm @ 3A, 18V |
| FET Feature | - |
| Power Dissipation (Max) | 85W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 900µA |
| Supplier Device Package | TO-247N |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 18V |
| Vgs (Max) | +22V, -6V |
| Drain to Source Voltage (Vdss) | 1200 V |
| Gate Charge (Qg) (Max) @ Vgs | 27 nC @ 18 V |
| Input Capacitance (Ciss) (Max) @ Vds | 463 pF @ 800 V |
| Qualification | AEC-Q101 |
Request a Quote
