RW4E045AJTCL1
NCH 30V 4.5A POWER MOSFET: RW4E0Manufacturer: Rohm Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More

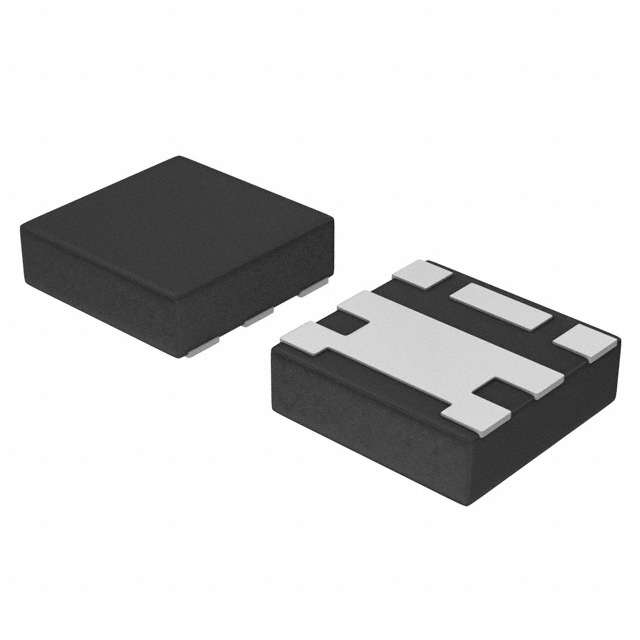

N-Channel 30 V 4.5A (Ta) 1.5W (Ta) Surface Mount DFN1616-7T
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-PowerUFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Ta) |
| Rds On (Max) @ Id, Vgs | 40mOhm @ 4.5A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 1.5W (Ta) |
| Vgs(th) (Max) @ Id | 1.5V @ 1mA |
| Supplier Device Package | DFN1616-7T |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 4 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 450 pF @ 15 V |
