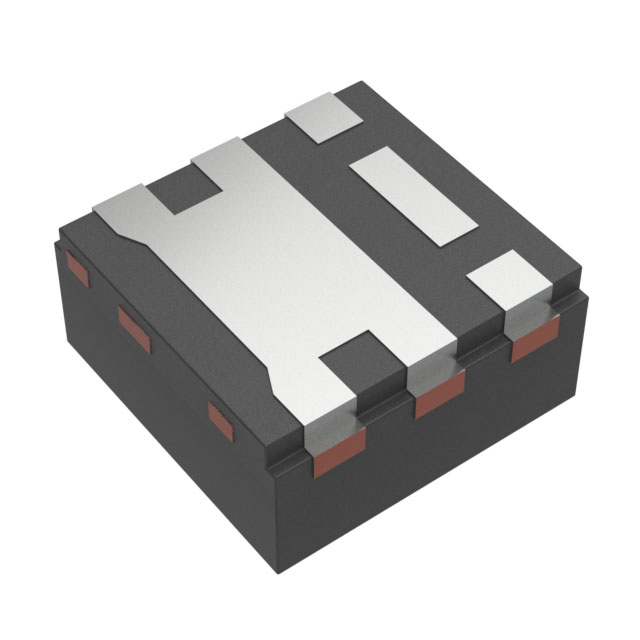

RV4E031RPHZGTCR1
MOSFET P-CH 30V 3.1A DFN1616-6WManufacturer: Rohm Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 30 V 3.1A (Ta) 1.5W (Ta) Surface Mount, Wettable Flank DFN1616-6W
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-PowerWFDFN |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 3.1A (Ta) |
| Rds On (Max) @ Id, Vgs | 105mOhm @ 3.1A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.5W (Ta) |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Supplier Device Package | DFN1616-6W |
| Grade | Automotive |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 4.8 nC @ 5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 460 pF @ 10 V |
| Qualification | AEC-Q101 |
