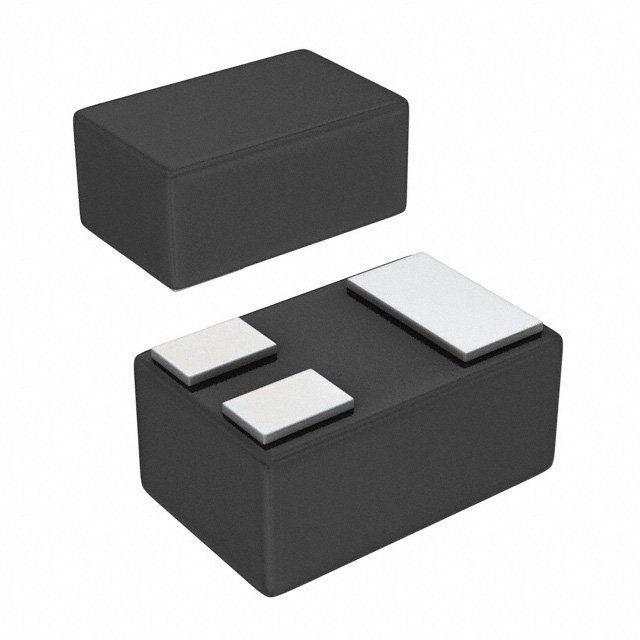

RV2E014AJT2CL
NCH 30V 1.4A, DFN1006-3, SMALL SManufacturer: Rohm Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 30 V 700mA (Ta) 400mW (Ta) Surface Mount DFN1006-3
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 3-XFDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 700mA (Ta) |
| Rds On (Max) @ Id, Vgs | 290mOhm @ 1.4A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 400mW (Ta) |
| Vgs(th) (Max) @ Id | 1.5V @ 1mA |
| Supplier Device Package | DFN1006-3 |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 30 V |
| Input Capacitance (Ciss) (Max) @ Vds | 105 pF @ 15 V |
Request a Quote
