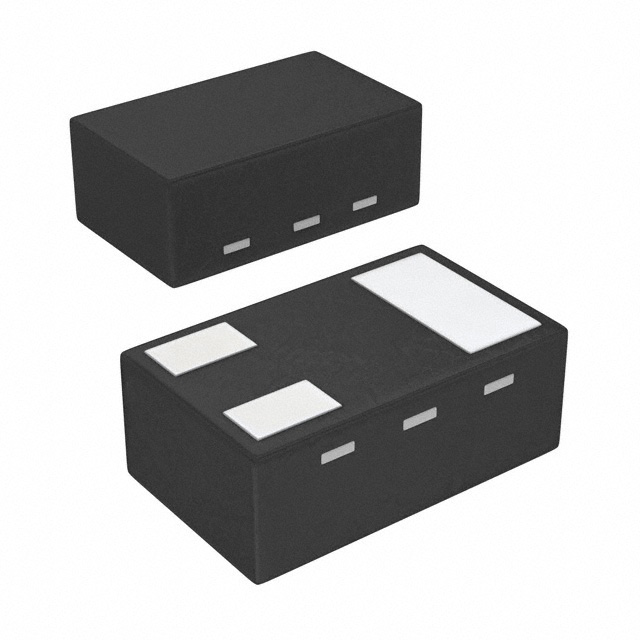

RV2C001ZPT2L
MOSFET P-CH 20V 100MA DFN1006-3Manufacturer: Rohm Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 20 V 100mA (Ta) 100mW (Ta) Surface Mount VML1006
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | SC-101, SOT-883 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
| Rds On (Max) @ Id, Vgs | 3.8Ohm @ 100mA, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 100mW (Ta) |
| Vgs(th) (Max) @ Id | 1V @ 100µA |
| Supplier Device Package | VML1006 |
| Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 4.5V |
| Vgs (Max) | ±10V |
| Drain to Source Voltage (Vdss) | 20 V |
| Input Capacitance (Ciss) (Max) @ Vds | 15 pF @ 10 V |
