RTR040N03TL
MOSFET N-CH 30V 4A TSMT3Manufacturer: Rohm Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Rohm Semiconductor's RTR040N03TL is an N-Channel MOSFET designed for demanding applications. This device features a Drain-to-Source Voltage (Vdss) of 30V and a continuous drain current (Id) of 4A at 25°C. Its low on-resistance, specified at a maximum of 48mOhm at 4A and 4.5V Vgs, ensures efficient power transfer. The RTR040N03TL operates with gate drive voltages as low as 2.5V and up to 4.5V, with a maximum gate-source voltage (Vgs) of ±12V. Key parameters include a gate charge (Qg) of 8.3nC maximum at 4.5V Vgs and an input capacitance (Ciss) of 475pF maximum at 10V Vds. This component is housed in a TSMT3 (SC-96) surface-mount package and supports a maximum junction temperature of 150°C. It is suitable for use in power management, consumer electronics, and industrial control systems. The device is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

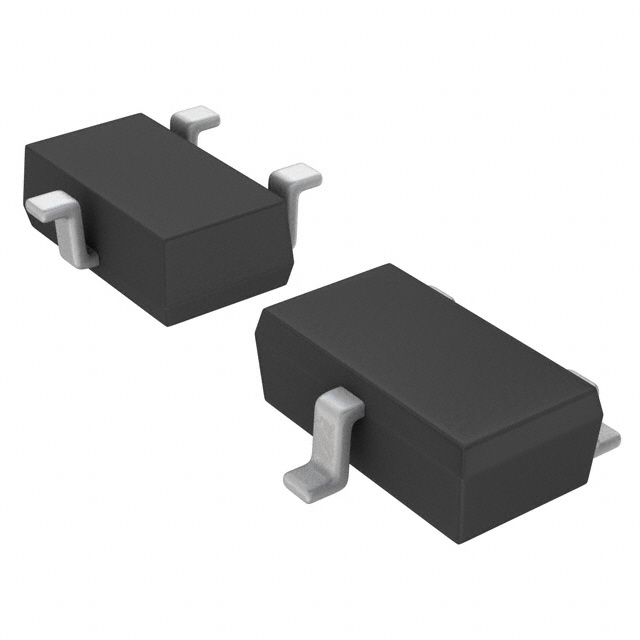

| Package / Case | SC-96 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
| Rds On (Max) @ Id, Vgs | 48mOhm @ 4A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta) |
| Vgs(th) (Max) @ Id | 1.5V @ 1mA |
| Supplier Device Package | TSMT3 |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 8.3 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 475 pF @ 10 V |
