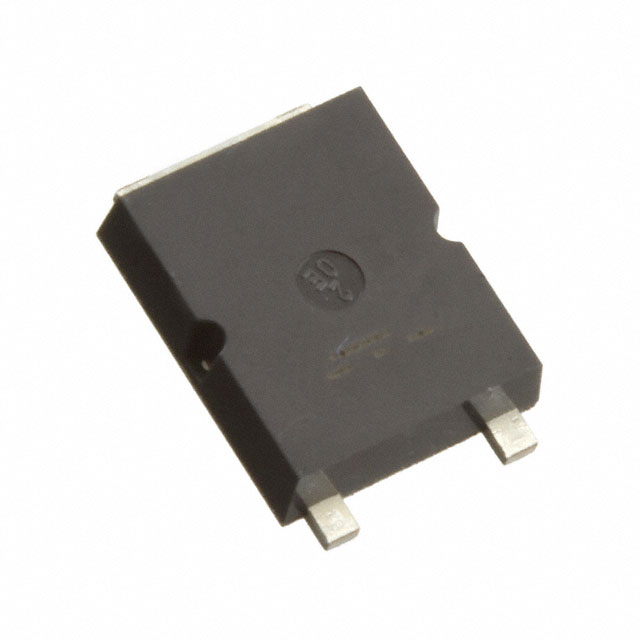

RSY160P05TL
MOSFET P-CH 45V 16A TCPT3Manufacturer: Rohm Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
Rohm Semiconductor RSY160P05TL is a P-Channel, 45V MOSFET designed for surface mount applications. This device features a continuous drain current (Id) of 16A at 25°C and a maximum power dissipation of 20W (Tc). The Rds On is specified at a maximum of 50mOhm at 16A and 10V Vgs. Key parameters include a Vgs(th) of 2.5V @ 1mA and a gate charge (Qg) of 25.5 nC @ 5V. Input capacitance (Ciss) is 2150 pF @ 10V. The operating junction temperature can reach 150°C. This component is commonly utilized in power management, automotive, and industrial applications. It is supplied in a TCPT3 package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, Flat Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 16A (Ta) |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 16A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 20W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA |
| Supplier Device Package | TCPT3 |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 45 V |
| Gate Charge (Qg) (Max) @ Vgs | 25.5 nC @ 5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2150 pF @ 10 V |
| Qualification | - |
