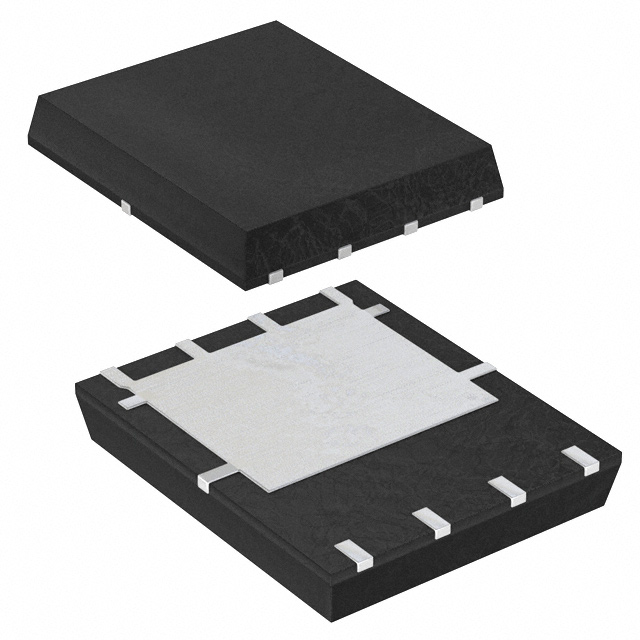

RS6G120BHTB1
NCH 40V 210A, HSOP8, POWER MOSFEManufacturer: Rohm Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 40 V 120A (Tc) 3W (Ta), 104W (Tc) Surface Mount 8-HSOP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) |
| Rds On (Max) @ Id, Vgs | 1.38mOhm @ 90A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 3W (Ta), 104W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Supplier Device Package | 8-HSOP |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 67 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4790 pF @ 20 V |
| Qualification | - |
