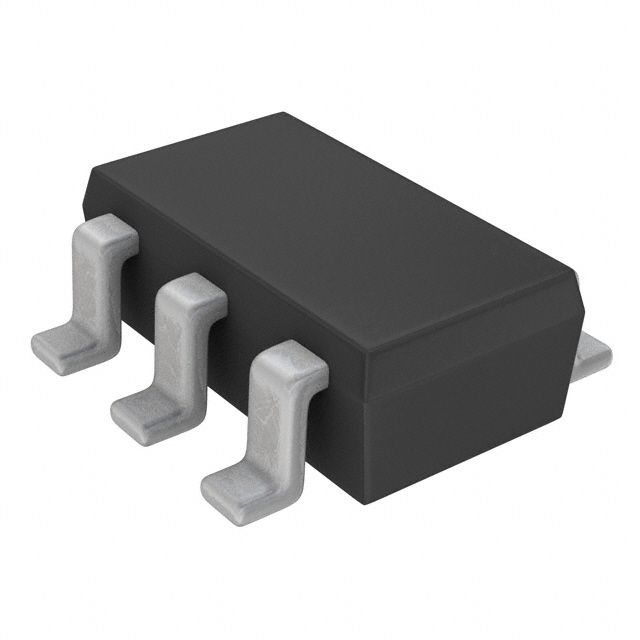

RQ6A050ZPTR
MOSFET P-CH 12V 5A TSMT6Manufacturer: Rohm Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 12 V 5A (Ta) 950mW (Ta) Surface Mount TSMT6 (SC-95)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) |
| Rds On (Max) @ Id, Vgs | 26mOhm @ 5A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 950mW (Ta) |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Supplier Device Package | TSMT6 (SC-95) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Vgs (Max) | ±10V |
| Drain to Source Voltage (Vdss) | 12 V |
| Gate Charge (Qg) (Max) @ Vgs | 35 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2850 pF @ 6 V |
