RH6R025BHTB1
NCH 150V 25A, HSMT8, POWER MOSFEManufacturer: Rohm Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More

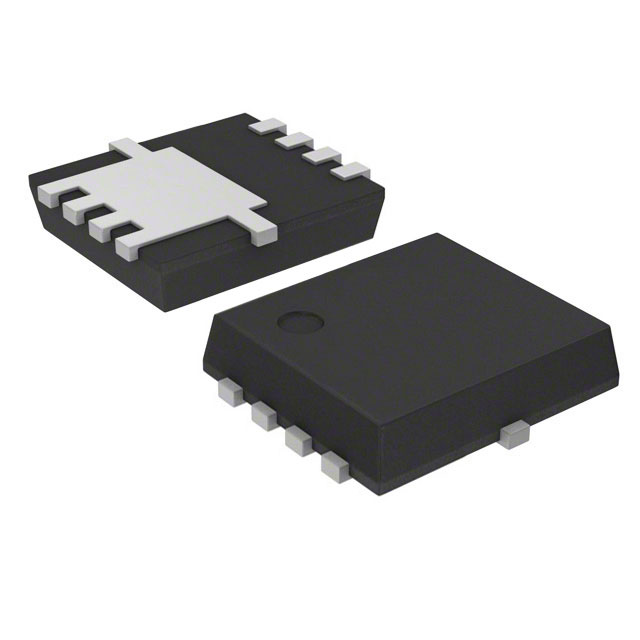

N-Channel 150 V 25A (Tc) 59W (Tc) Surface Mount 8-HSMT (3.2x3)
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 25A (Tc) |
| Rds On (Max) @ Id, Vgs | 60mOhm @ 25A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 59W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Supplier Device Package | 8-HSMT (3.2x3) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 150 V |
| Gate Charge (Qg) (Max) @ Vgs | 16.7 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1010 pF @ 75 V |
Request a Quote
